B82723J2402N001, EPCOS 2.7 mH ±30% Ferrite Power Line Choke, 4A Idc, 60mΩ Rdc 250 V ac, B82721A, Индуктор

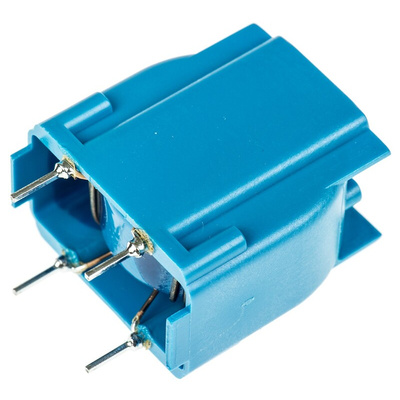

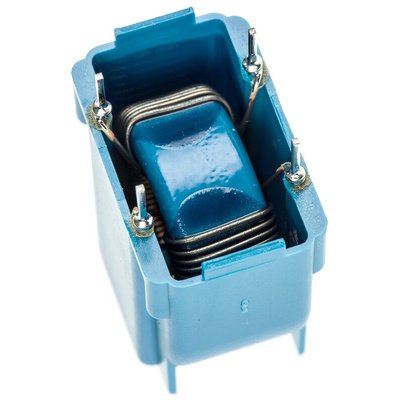

Epcos B82721A Series Common Mode Choke

Current-compensated ring core double chokes with a ferrite core in flame retardant potting and case to (UL94V-0)
High resonance frequency by virtue of the unique winding technique used
Applications include switch-mode power supplies for computers, televisions and other sensitive electronic equipment. Additionally the B82721/2/3/4/5A ranges of chokes are suitable for electronic ballasts in lamps, and the B82725J range of chokes is ideally suited for washing machines and chargers.
Low profile horizontal (-A/-B) versions
Vertical (-J/-K) versions save PCB space

Note

The stated Rated Current I_R is referenced to 50Hz @ T_A 40°C
The stated Rated Inductance L_R is per Coil @ 20°C

Standards

VDE 0565-2 UL 1283

Approvals

VDE; UL Recognised Component

Approvals

UL; VDE

Datasheet
