RS PRO 10A 420 V ac 400Hz, Chassis Mount RFI Filter, Tab 3 Phase, Фильтр

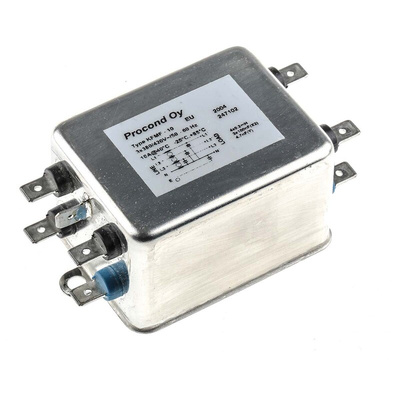

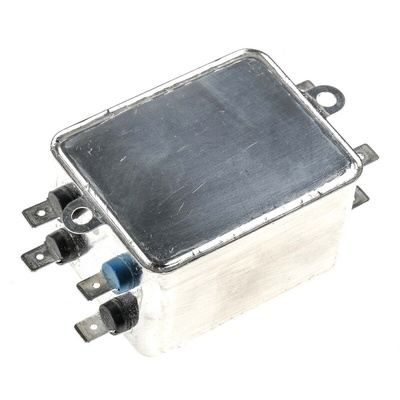

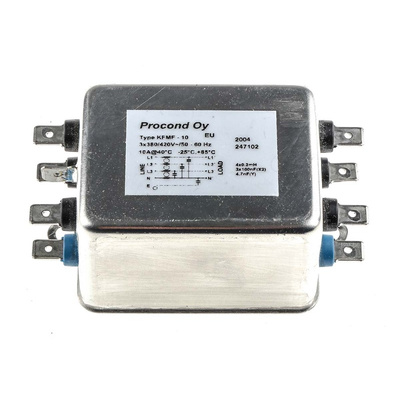

RS PRO Chassis Mounting RFI Filter, Tab, 10 A, 420 V (AC), 400 Hz,

Improve the safety and performance of your electrical equipment with this filter from RS PRO, which limits the effects of RFI (radio frequency interference). It can attenuate outside signal noise that might disrupt the functioning of your electrical equipment, and it also reduces the RFI given off by your own devices to acceptable levels.
The filter has tabs for soldering which are also compatible with push-on receptacles, to allow simple, secure connections for a wide range of devices. Its mount means that you can install it easily on the chassis of a piece of equipment, as well as on a panel or similar surface. This will reduce your maintenance time and costs. A three-phase RFI filter like this is most commonly used in frequency converters, motor drives, and machine tools that are controlled by microprocessors.

Features and Benefits

• Capacitance of 4.7 nF (nanofarads), 100 nF
• Dimensions of 90 (depth) x 40 (height) x 52 mm (length)
• Inductance of 0.2 x 4 mH (millihenry)
• Leakage current of 0.5 mA (milliamperes)
• Maximum current rating of 10 A
• Maximum voltage rating of 420 V (volts) AC
• Operating temperature range of -25°C to +85°C
• Operating frequency of 400 Hz (hertz)
• Chassis mounting
• Tab termination style

RS Pro Datasheet
