RS PRO 10A 250 V ac 400Hz, Chassis Mount RFI Filter, Tab, Фильтр

RS PRO 10 A 250 V AC 400 Hz, Chassis Mounting RFI Filter, Tab

Use this RS PRO RFI (radio frequency interference) filter if you want to prevent RFI from disrupting circuitry. It attenuates intensive, high-frequency noise in both the common and differential modes. This makes it a good choice for sensitive equipment.

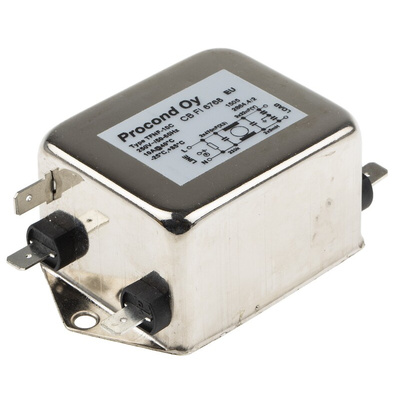

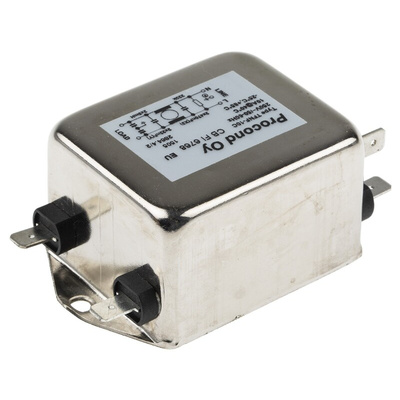

The filter offers versatile installation options as the 1/4-inch tabs can be soldered or terminated with push-on receptacles. You can also chassis-mount it on a panel or a similar surface for ease of installation.


RFI filters like this one are commonly used in medical or telecommunications equipment, in addition to household appliances. It has a capacitor discharge resistor to prevent electrical hazards when the product is disconnected, ensuring workplace safety.

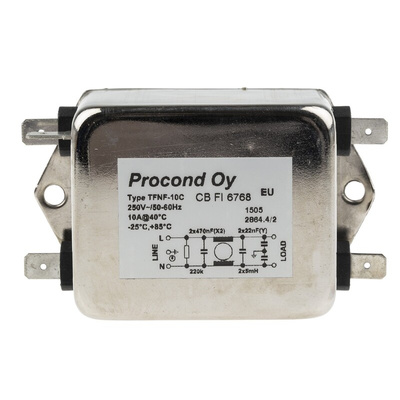

Features and Benefits

• Capacitance of 0.47 x 2 μF (microfarads), 22 x 2 pF (picofarads)


• Dimensions of 52 (depth) x 40 (height) x 90 mm (length)


• Inductance of 5 x 2 mH (millihenry)


• Leakage current of 2.1 mA (milliampere)


• Current rating of 10 A


• Voltage rating of 250 V (volts) AC


• Operating temperature range of -25°C to +85°C


• Operating frequency of 400 Hz (hertz)

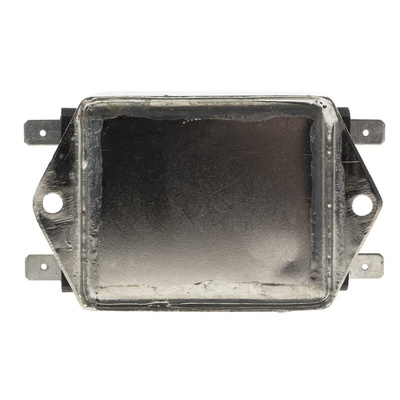

• Chassis mounting


• Single stage


• Resistance of 220 kΩ (kiloohms)


• Tab termination style

Approvals

VDE; FI
