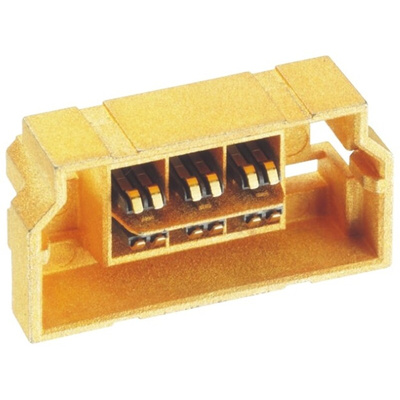

75005-0004, Molex Plateau HS Mezz Series Straight Surface Mount PCB Socket, 24-Contact, 2-Row, 1.2mm Pitch, Solder Termination

Plateau HS Mezzanine Receptacles

PCB polarised
100 mating cycles
Current rating of 1.5 A max. per circuit

Approvals

UL 29179, CSA LR19980

1.20mm Plateau HS Mezz™

Pleateau HS Mezz™ high speed mezzanine plugs and receptacles feature innovative gold-plated plastic Plateau Technology™ for outstanding performance and enabling differential data rates in excess of 10 Gigabits per second.,The shielding properties of the plated housing effectively isolate each differential pair, reducing the total number of terminals needed for grounding.,Ideal for servers, mainframe computers, workstations, test equipment, telecommunications equipment, medical equipment and instrumentation.

Differential data rates in excess of 10 Gigabits per second
Plated plastic housing reduces need for higher pin counts
SMT contacts on 1.20mm pitch spacing with pairs on 3.50mm pitch
Two points of contact on each signal interface for high reliability
Stack heights from 9mm to 25mm
Reflow capable max temp 260°C
Housing Material: LCP
