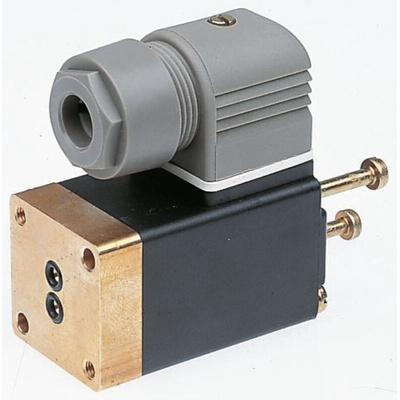

Burkert Solenoid Valve 138043, 2 port(s) , 24 V dc, Клапан

Solenoid valves for Cconnector plates, type 1

Solenoid valves closed when not in use
Distributor connection for reducing pipe connections
The three-pole DIN-plug with protection rating IP65 can be pivoted through 360 ° in 90 ° steps
Coil is encapsulated in epoxy
Fluid temperature range -10 °C → +90 °C
Valves can be mounted in any position; mounting with coil facing up is preferred

Possible uses

Oils and greases without additives
Water and neutral fluids
Air and neutral gases

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
