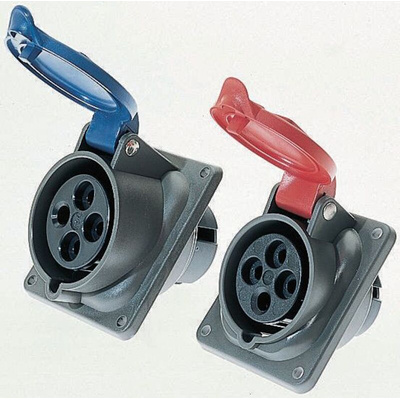

0 520 22, Legrand Right Angle Switchable IP44, IP55 Industrial Interlock Socket 2P+E, 16A, 250 V, Розетка с блокировкой

0246944
Номер производителя: 0 520 22Производитель: Legrand
Цена за шт.
8397.00 руб. (С НДС) *
Количество 5+
Цена 7968.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Panel sockets

Hypra sockets can be installed on panels or surface mounted using single-row housings.
Applications: manufacturing workshops, worksites, industries.

Standards

IEC 309-1, IEC 309-2, EN 60309- 1, EN 60309-2

Legrand Range

Flexibility is the key to success of the new Hypra range of industrial plugs and sockets. The wide choice of product formats means that the Hypra range satisfies the demands of most applications.,All plugs and connectors feature an external cable clamp with internal glanding; this affords maximum safety in the wiring, rendering accidental unclamping of the cable impossible, thereby eliminating pulling and stress on the connections. An additional benefit of the internal glanding is that it provides optimum protection against the ingress of water.,Other products in the range boast features including stainless steel external screws, captive terminal screws and nickel plated brass pins and socket tubes. The plastic shielding of active parts is self-extinguishing.,Temperature rating -25 to +40°C.,All products are coded by earth contact position and colour coded for voltage and suitable for 50/60Hz operation.

Техническая спецификация
pdfDatasheet
pdfDatasheet
Глубина:
132мм
Длина:
115мм
Корпус - материал:
Полимер
Номинал тока:
16A
Номинальное напряжение:
250 В
Ориентация корпуса:
Правый угол
Переключаемый:
Да
Размеры:
72 x 64мм
Разъем/гнездо:
Гнездо
Степень защиты IP:
IP44, IP55
Формат полюса:
2P+E
Цвет:
Голубой
Ширина:
64мм
