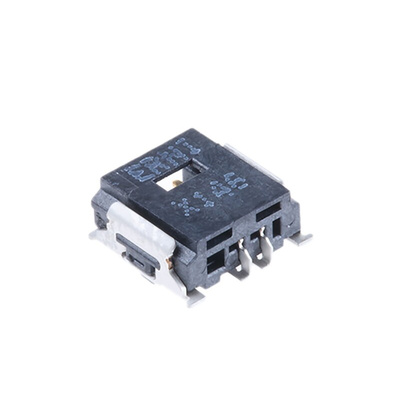

214011, ERNI, MiniBridge, 2 Way, 1 Row, Right Angle PCB Header

90° Single Row SMT Plug

The plastic housing is able to withstand high temperatures making it suitable for lead-free reflow soldering processes.

Pick-and-place cover for automated assembly
Reliable retention force due to ruggedized metal clips on both sides of the plug
Two pegs (round and oval) to aid exact positioning on the PCB
Guiding element

1.27 mm ERNI Minibridge™ Cable System

Ideally suited for diverse sensor, actuator, power-supply and data applications in the fields of automotive and industrial electronics, computer technology, consumer electronics and medical device technology. Despite its very small dimensions this system offers a high current capacity of up to 4A (at 20°C, depending on the cable)

Contact resistance <25 mΩ
Insulation resistance >10⁴
