Fluke 175 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated, Мультиметр

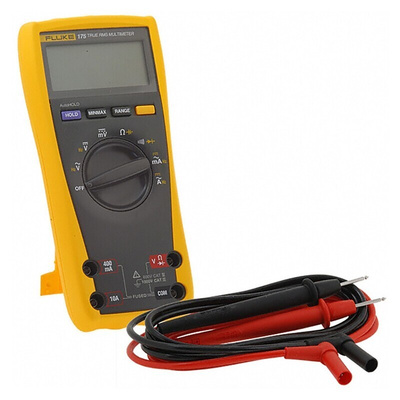

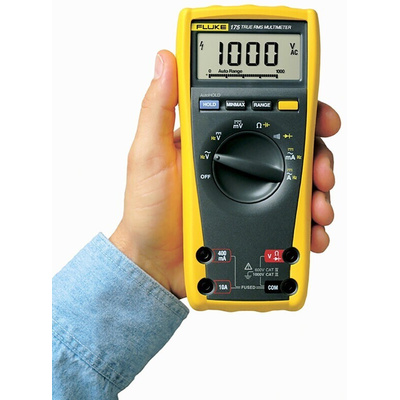

Fluke 175 True-RMS Digital Multimeter

Fluke 175 Series digital multimeters, offers precision, reliability and ease of use. The ideal choice for troubleshooting and repairing all your electrical and electronic systems. True RMS digital multimeters ensures accurate results even when testing on irregular AC circuits.

Features and Benefits

• The Fluke 175 meters have the features needed to find most electrical, electro-mechanical and heating and ventilation problems.
• They are simple to use and have significant improvements over previous models, True-RMS, more measurement functions, conformance to the latest safety standards, and a much larger display that’s easier to view.

Specification

• True-RMS measurements
• Digital display counts, updates 4 times per second
• Display backlight
• Analogue bargraph / segments, updates 40 times per second
• Auto and Manual ranging
• Display Hold and AutoHOLD®
• Min-Max-Average recording mode with Min/Max Alert
• Temperature readings (bead thermocouple probe included)
• Smoothing mode allows filtering of rapidly changing inputs
• Audible continuity and diode test
• Test lead alert
• Unsafe voltage alert warns for voltages above 30 V
• Low battery indication

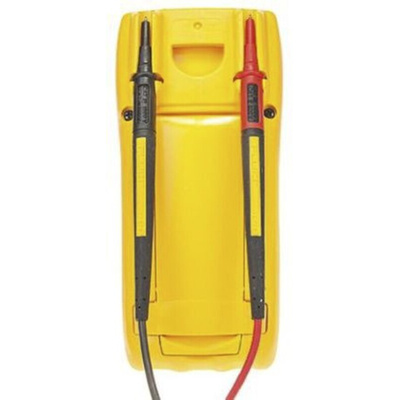

• Ergonomic case with integrated holster
• Easy battery and fuse exchange without opening the complete case
• Selectable sleep mode preserves battery life
• CAT III 1000V and CAT IV 600V safety rated

FAQ’s

Q: Can I use the 175 to test if a fuse is good or bad?
A: Yes, you can check a fuse functionality via a continuity test.

Q: Is this Fluke 175 multi meter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.

Q: Does this come with a calibration certificate?
A: All calibrated option multimeters are supplied with the appropriate certifications.

Application Information

Fluke Digital Multimeters are a standard diagnostic tool, ideal choice for technicians in the electrical/electronic industries. Technicians with specific task needs can view our wide range of multimeters.

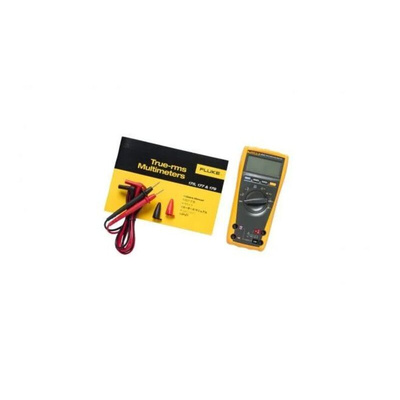

Supplied with

Fluke 175 True-RMS Digital Multimeter
(1 pair) Test Leads
9V Battery (Installed)
Quick reference guide

FLUKE Multimeter, Backlit Display, 200h Battery Life - 170 Series - FLUKE 175

Get the full measure of your electric circuit with this multimeter from FLUKE. It's a versatile tool that takes multiple readings, from AC/DC voltage, current and resistance to capacitance, continuity and frequency levels. Thanks to its bright backlit display, you won't have a problem using it in the dark. A typical battery life of 200h makes this a trusty choice for long-term use. To conserve its battery, you can put the unit into sleep mode.

Features & Benefits

• Typical battery life of 200h for portability
• AutoHOLD button for convenient recording of results
• Smoothing mode filters input signals for clear readings

Applications

• DIY repairs
• Automotive engineering
• HVAC systems

What's the voltage measurement range of the multimeter?

Thanks to a voltage measurement range of 0.1mV to 1000V AC/DC, you can use this device in applications with both low and high power.

How accurate is this multimeter?

The product has an accuracy rating of ±1% for AC and ±0.15% for DC voltage measurements. For current, it has an accuracy rating of ±1.5% for AC and ±1% for DC, so you can be sure your margin of error is low.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Datasheet

170 Series Technical Data

175, 177, 179 User Manual
