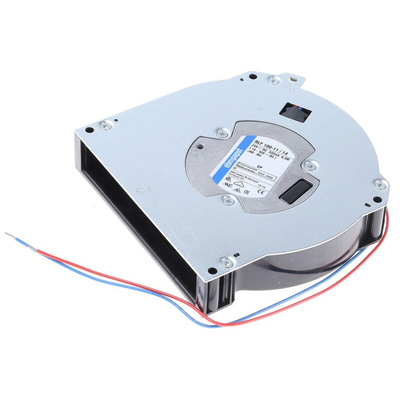

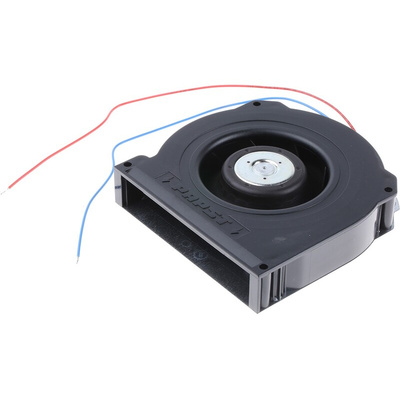

RLF100-11/14, ebm-papst RLF 100 Series Centrifugal Fan, 24 V dc, 64m³/h, DC Operation, 127 x 127 x 25.4mm

ebm-papst Centrifugal Fan

The ebm-papst centrifugal fan has an airflow of 64m³/h and a supply voltage rating of 24VDC. It is enabled with a speed signal, a ball bearing and a wire leaded power connection. It has a scroll housing made up of fibreglass-reinforced plastic and a fibreglass-reinforced plastic impeller. It is 127mm long, 127mm wide and 25.4mm deep. Axial air intake and centrifugal air exhaust discharge through the direction of airflow with single strands 22AWG, TR 64 connection leads and the backwards-curved impeller. The AC axial compact fan is suitable for high air performance with moderate pressure build-up.

Features and Benefits

DC radial blower with electronically commutated external rotor motor.
Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation
Electronic protection against reverse polarity, locked rotor and overloading

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

UL approved
CSA certified
VDE approved
CE certified
IP54 rated
