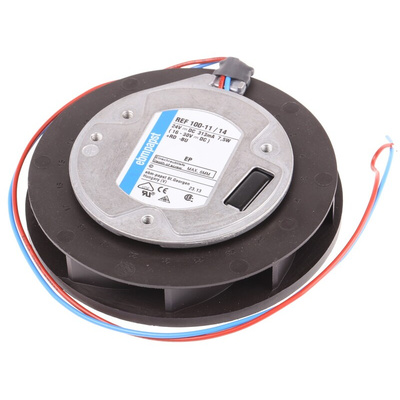

REF100-11/14, ebm-papst REF 100 Series Centrifugal Fan, 24 V dc, 86m³/h, DC Operation

ebm-papst DC Centrifugal Fan

The ebm-papst high tech, DC radial, a centrifugal compact fan has an airflow of 86m³/h at a fan speed of 5400rpm and has a supply voltage rating of 24Vdc. It is enabled with a speed signal, a ball bearing and wire leaded power connection. The fan has a scroll housing of fibreglass-reinforced plastic impeller. The fan speed provides an axial air intake and centrifugal air exhaust out of the outlet direction of airflow with single strands 22AWG, TR 64 leads and forward-curved impeller. The AC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

Features and Benefits

High static pressure capabilities
Locked rotor protection
Ball bearing type
High-temperature low power operation
Protection against reverse polarity and blocked rotor.

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

UL approved
CSA
VDE
CE certified
