DPM 500, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, Вольтметр

3 Digit LCD Voltmeter

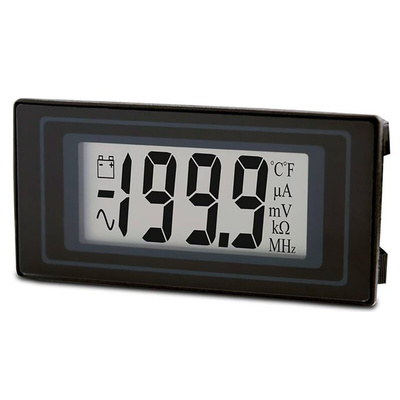

Lascar's DPM 500 is a compact panel meter featuring a 3 digit LCD with 12.5mm digit height, annunciators and a low-profile bezel for mounting. The DPM 500 uses advanced components and construction techniques to provide a uniquely compact unit.

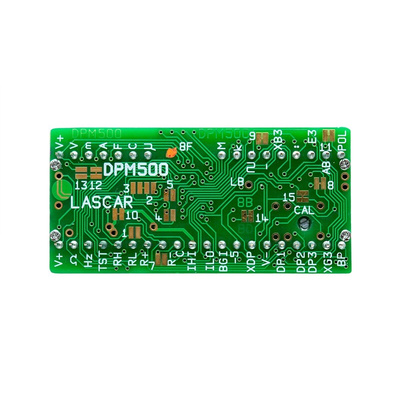

The meter is in a 40 pin DIL integrated circuit format that can be plugged directly into a DIL socket or panel mounted using the snap in bezel.

With a 200mV d.c. full scale reading, auto-zero and auto-polarity this meter plugs directly into a 40-way DIL socket or can.

Features and Benefits

12.5mm Digit Height
Programmable Decimal Point
Auto-Zero
Auto-polarity
200mV d.c. Full scale reading
Annunciators

LCD 10 to 15mm Digit Height, Optional Symbols

All these digital voltmeters have an operating temperature of 0 to + 50°C and feature selectable decimal points, auto polarity and auto zero. They can be converted to ammeters using a 200mV digital current shunt.

31/2 Digit LCD DPM
