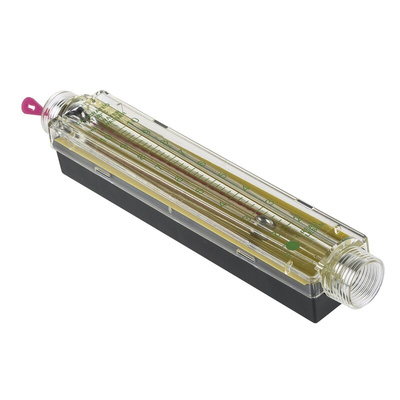

LF802413, Parker S Series Variable Area Flow Meter for Liquid, 1.5 L/min Min, 10 L/min Max

Parker Flowmeter

The Parker S series variable area flowmeter measures a liquid flow rate of 1.5L/min to 10L/min. This variable flow indicators with a float inside an outer graduated flow scale on the viewing sleeve. It utilizes the technique of differential pressure across a piston. As the flow increases, the piston moves against a calibrated spring.

Features and Benefits

Pipe diameter range is 3/4 in
Connection type is 3/4 BSP
Maximum operating pressure is 10bar
Maximum operating temperature is 60°C

It has accuracy ±2%
Repeatability ±1%
Operating pressure is 10bar
It be installed in a vertical plane for maximum accuracy

Applications

Water treatment
Cooling systems
Industrial washing systems
Irrigation
