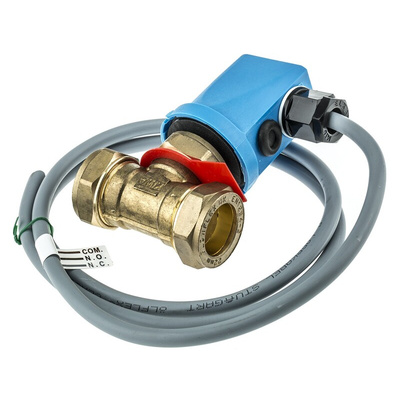

Novotech Controls SPCO Series Control Valve Flow Sensor for Liquid, 3 L/min Min, 6 L/min Max

Novotech Flow Switch

The Novotech SPCO series flow switch has a liquid flow rate of 3L/min to 6L/min. This flow switch has a highly efficient switching capability of 16A at 240VAC (resistive load). This switch is designed for use within water but can be used with alkalis, alcohol, fuels and lubricating oils. This flow switch needs to be mounted in line with the flow.
Note:
Not designed for frequent flow rate readjustment
Not for use with diluted or concentrated acids
Inclusions:
Compression fittings and 1m of 3-core PVC cable fitted.

Features and Benefits

Pipe diameter range is 22mm
Pressure rating is 10bar
Operating temperature is maximum 70°C

Certifications

IP54 rated
Wetted materials approval in accordance with UK Water Fittings and Bylaws scheme (WFBS) listed

V8771 01-04-2001

Flowswitch installation leaflet (15mm & 22mm)
