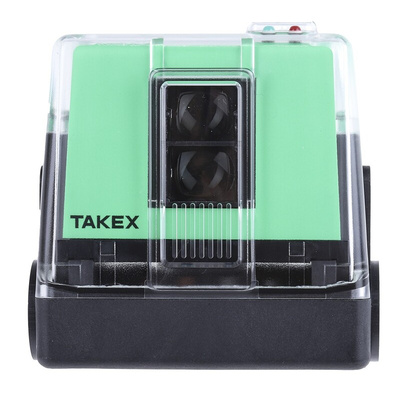

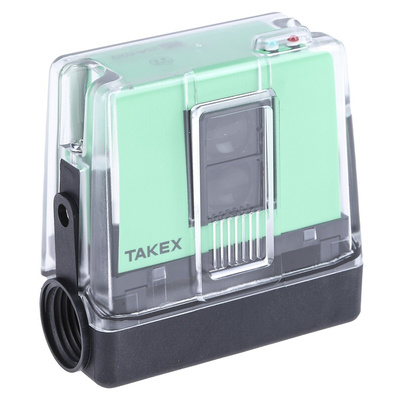

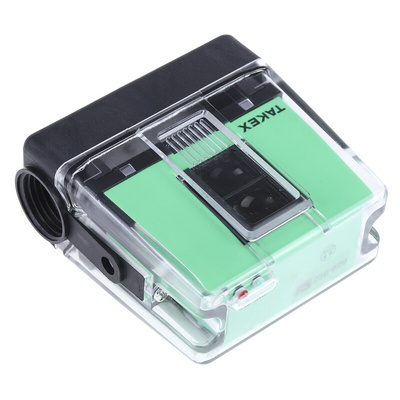

RS PRO Retroreflective Photoelectric Sensor, Block Sensor, 30 mm → 3 m Detection Range, Фотоэлектрический датчик

RS PRO Retroreflective Photoelectric Sensor with Block Sensor, 30 mm to 3 m Detection Range

Use this photoelectric sensor from RS PRO to control the placement of components on an assembly line. It automatically detects the position of objects and communicates with a central control panel to keep automated processes running smoothly. You'll find a sensor like this used in recycling centres for detecting items on a conveyor belt.
The sensor has an upper section that can be removed, without needing to detach the wiring from the base. This makes maintenance and inspection quicker. Screw-in terminals allow for simple electrical connections that are also highly secure. Its IP66 (Ingress Protection) rating means its well-protected from dust and water sprays, making it safe to use in industrial settings, such as aggregate processing plants.

Features and Benefits

• Detection range of 30 mm to 3 m
• Retroreflective detection type
• Four terminal screw electrical connection
• Acrylic housing material
• Ingress Protection (IP) rating of IP66
• Maximum current of 2 A
• Maximum voltage of 250 V AC/DC
• Operating temperature range of -25°C to +55°C
• LED (light-emitting diode) optical technology
• Relay output type
• Response time of 5 ms (microseconds)
• Block sensor style
• Meets CE (Conformité Européenne) and RoHS (Restriction of Hazardous Substances) standards
• Screw terminal type
