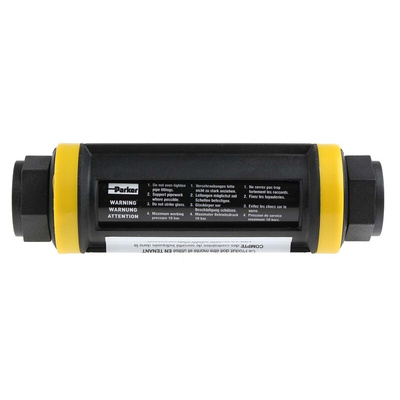

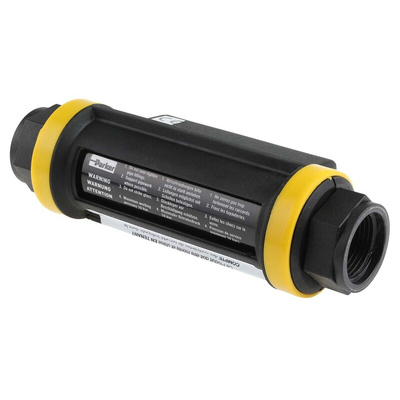

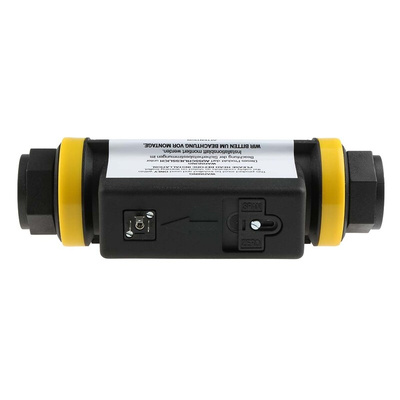

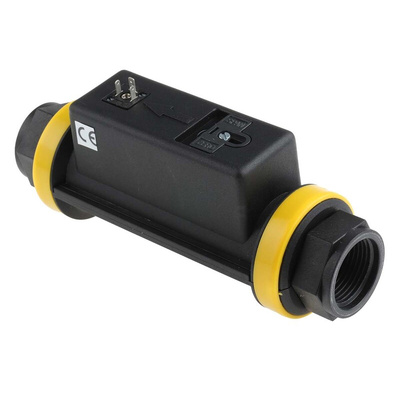

Parker Liquid Flow Transducer
The Parker liquid flow transducer is designed to operate with most of the liquids. This transducer has an output current of 4mA to 20mA. The output signal is proportional to the flow. The fluid passes through internal flow straighteners to stabilize turbulence, before impacting the vanned turbine rotor, which rotates at a speed proportional to the flow rate. The rotor vanes have stainless steel tips, which are detected by a sensor mounted externally to the glass tube.
Features and Benefits
Accepts reverse flow
Works in any plane
Negligible pressure drop
Pressures up to 10bar
Affordable
Simple to install
For use with most liquids
Factory calibrated
Accuracy is ±2%
Connections: 1in BSP parallel threads
Applications
Totalising/latching applications when used with a compatible counter
Certifications
DIN 43650
Техническая спецификация
