FS15A, Sensata / Cynergy3 Flow Switches Series Horiztonal/Vertical Mount Flow Controller, 2 L/min, Relay Output, 15 mm Pipe, Регулятор потока

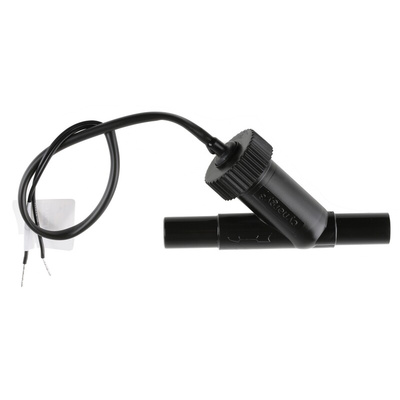

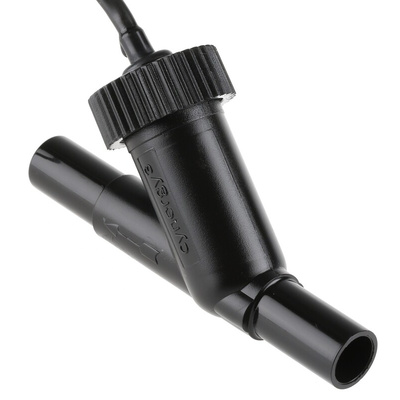

Sensata Cynergy3 Flow Controller, 2 L/Min - FS Series - FS15A

Accurately measure liquid volumes with this flow controller from Sensata. The relay-controlled output switch acts on demand to start or stop the flow of liquid, so it prevents over or underfilling. It's well-suited to a broad range of applications, such as the accurate dispensing of liquid in dosing-control situations.
The unit features low flow restriction for fast response times and has a high maximum flow rate of two litres per minute. You can use it with both hot and cold water, as well as with a broad range of chemicals for added versatility.

Features and Benefits

• Can be used in high-heat applications with temperatures of up to +85°C
• Made from durable acetal resin to withstand harsh environments
• Features a 25 cm cable sheathed in PVC (polyvinyl chloride) for good insulation and resistance to corrosion

How do you mount this flow controller?

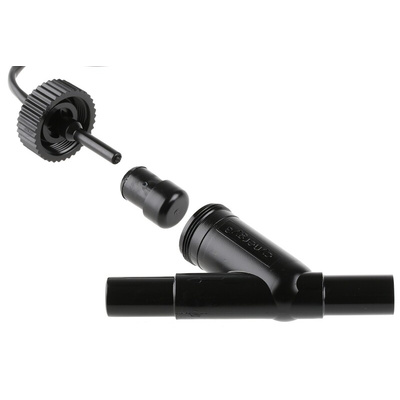

For easy installation, this versatile flow switch can be mounted with the flow direction in a horizontal or vertical orientation. The cap, with its cable connection, should always face upwards as the piston is returned to its released position by gravity. The switch offers greater sensitivity when mounted vertically.
