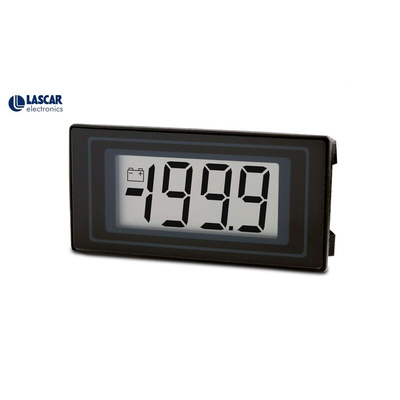

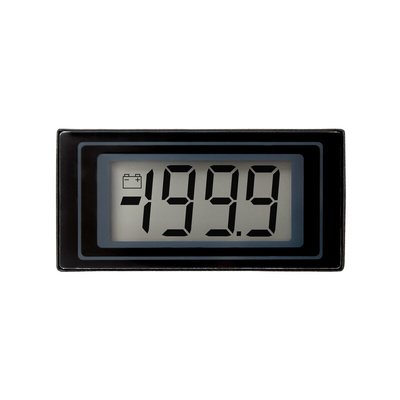

DPM 125, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, 45 x 22.2 mm, Вольтметр

Lascar Low Power Voltmeter

The Lascar low power voltmeter is a compact instrument, ideally suited for low or high volume applications. It features an exceptionally large display in a miniature package. The meter can be directly plugged into a SIL socket or can be panel mounted using the snap-in bezel. This snap-in bezel incorporates a flat reverse printed window giving a superb appearance that cannot be damaged or rubbed of by contact. The on-card solder pads for essential inter-connections make the selection of the operating mode quick and easy with a minimum of external wiring. It has measurement range is between -200mVDC and 200mVDC and supply voltage ranging between 7.5VDC and 14VDC.

Features and Benefits

Digit height is 12.5mm (0.5in)
Logic selectable decimal points
Auto-zero
Auto-polarity
Full scale reading (F. S. R.) is 200mVDC
Low battery indication
Very low current consumptions
Long battery life
Useful in portable equipment
Operating temperature ranging between 0°C and 50°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

31/2 DIGIT LCD DPM

31/2 DIGIT LCD DPM
