DPM 400, Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, Вольтметр

3 Digit LCD Voltmeter

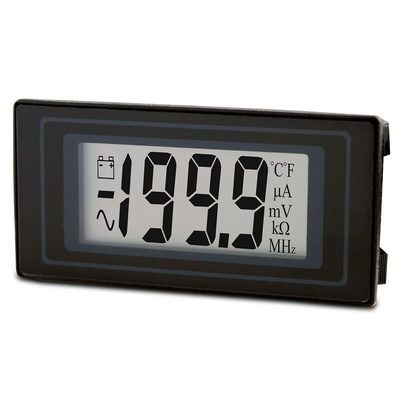

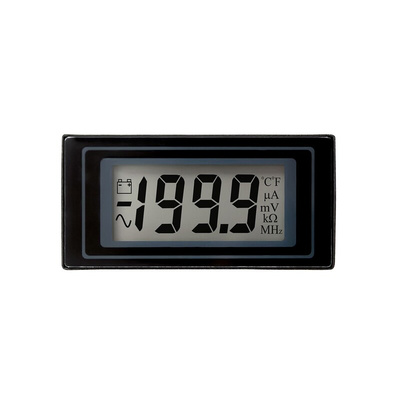

The DPM 400 features a 3 digit LCD with 10mm digit height annunciators and a low-profile bezel for mounting. The meter has a 28 pin DIL integrated circuit format and can be plugged directly into a DIL socket or can be panel mounted using the snap in bezel provided.

The bezel incorporates a flat reverse printed window, giving a superb appearance that cannot be damaged or removed by contact. This unique compact LCD meter is ideally suited to low or high volume applications.

Features and Benefits

10mm Digit Height
Programmable Decimal Points
Auto-Zero
Auto-Polarity
200mV d.c. Full Scale Reading
Annunciators

LCD 10 to 15mm Digit Height, Optional Symbols

All these digital voltmeters have an operating temperature of 0 to + 50°C and feature selectable decimal points, auto polarity and auto zero. They can be converted to ammeters using a 200mV digital current shunt.

Lascar digital panel meter modules application notes

Datasheet
