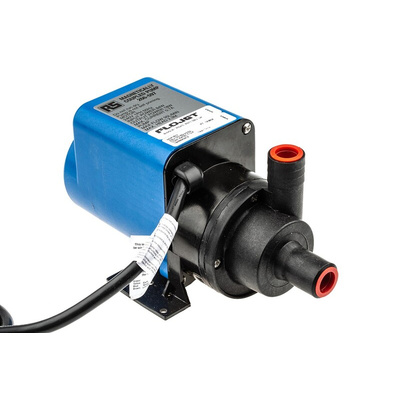

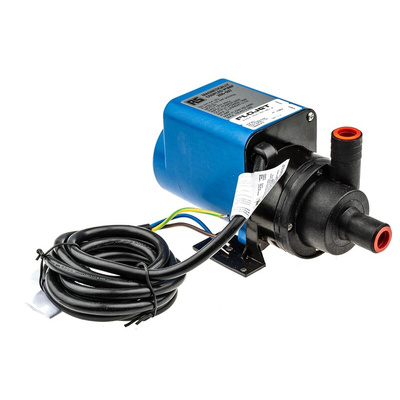

143904, Xylem Flojet 230 V 1.4 bar Magnetic Coupling Centrifugal Water Pump, 35L/min

Xylem Flojet Water Pump

The Xylem Flojet magnetic coupling water pump is a highly efficient pump used for continuous duty. It is ideal for water or chemical transfer and re-circulation applications. It has a maximum flow rate of 35L per minute. It is known for trouble-free pumping of acids and alkalis, mainly found in the photographic and printing industries and also hygiene or sterilisation processes.

Note:
Not self-priming
requires a flooded suction of approximately 300mm

Features and Benefits

The supply voltage is 230V
Maximum working pressure is 1.4bar
Maximum fluid temperature is 85°C
Input power is 84W
Magnetically coupling which offers leak-free pumping
No Mechanical seal
Reduced heat transfer from the motor to the fluid
Hose port connection
Zero maintenance
Pump chamber and impeller is made of polypropylene with alumina-ceramic shaft/thrust washers
Fluoro-elastomer rubber static O-ring seal, and ’graph ion’ impeller bearings
The mounting plate offers several fixing options

Applications

Pure or precious liquids, chilled water
X-ray machine
Industrial processing equipment

Certifications

IPX5 rated
ANSI/ESD-S20.20:2007
