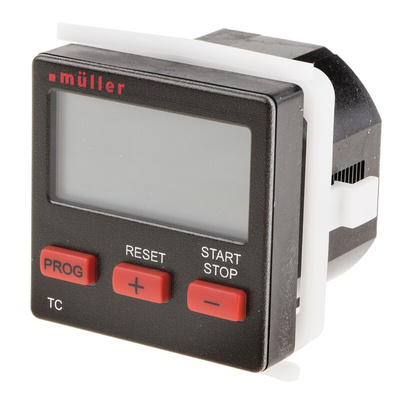

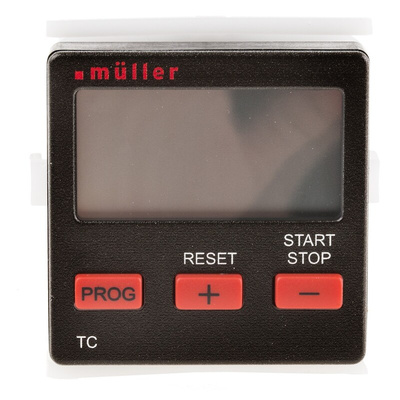

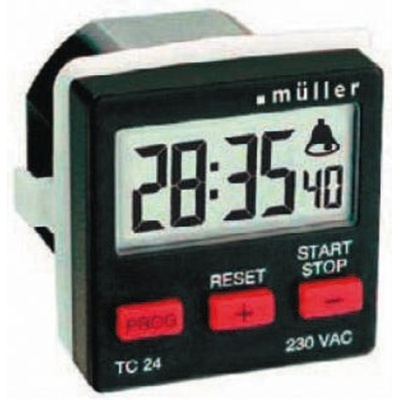

TC 24.21, Muller 1 Channel Digital Surface Mount Time Switch Measures Seconds, 230 V ac

100 Hour Count-Down

Max time: 99h 59m 59s
Inputs for start and stop
Start/Stop button
Optical and acoustic signal on completion of time
Screw clamp connection

Muller Count Down Timer

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 24VDC coil and an SPDT 1 C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail and panel mounting
• Easy to program and operate
• Repeatability accuracy is 100%
• Time base is quartz
• Time set accuracy is 1 second
• Switching capacity is 8A
• Start/stop button
• Maximum time: 99 hours 59 minutes 59 seconds
• Power consumption of 0.7W
• Optical and acoustic signal on completion of time
• Screw clamp connection
• Operating temperature ranging between -5°C and 50°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
