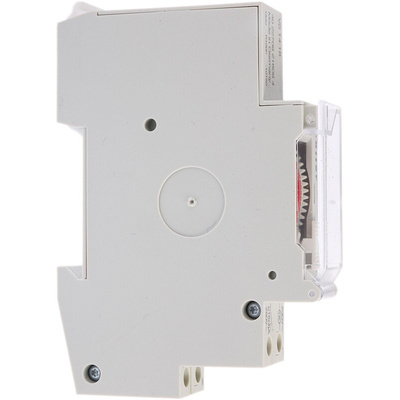

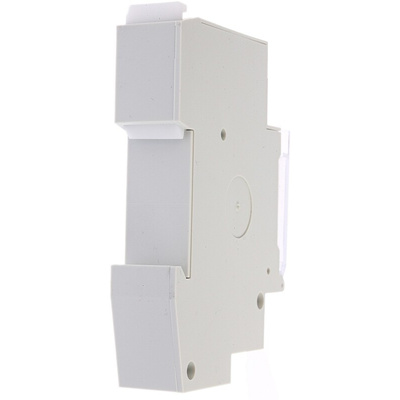

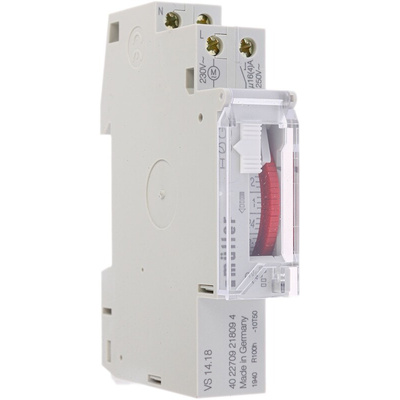

VS 14.18, Muller Analogue DIN Rail Time Switch 230 V ac, 1-Channel

17.5mm 24 Hour Time Switches

Time switches for DIN-rail mounting

Daily program
Captive setting keys
Manual overide switch, Permanently ON / AUTO

Muller Time Switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 12VDC coil and an SPDT 1 C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• Day without reserve version
• DIN rail mounting
• Simple to install
• Time base is quartz
• Minimum interval to switch is 15 minutes
• Easy to read switching program
• Manual override switch permanently ON/AUTO
• Power consumption of 1VA
• Screw terminal connection
• Operating temperatures range between -5°C and 50°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• DIN EN 60529

Analogue
