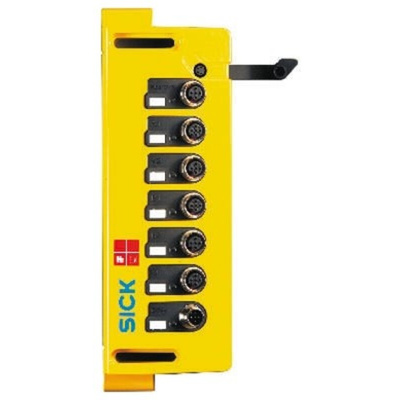

UE403-A0930, Sick UE403 Series Input/Output Module, 24 V dc

Sick Safety Relay Module

The Sick safety relay module is muting switching amplifier. This has an override, reset, C1, belt stop and muting sensors inputs with ON state switching voltage of 24VDC and OFF state switching voltage of 0VDC. It has voltage supply for reset, override, muting sensors and C1 outputs with a supply voltage rating of 24VDC.
Note:
For use with the M4000 series of light curtains
UE403 to M4000. Connection cable sold separately.

Features and Benefits

5-pin M12 female connector interface
Concurrence monitoring function
Monitoring of total muting time
Sensor gap monitoring function
Belt stop function
Muting with override function
Exit monitoring function
End of muting by ESPE function
Has a muting lamp

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP65 rated
CE certified
cULus approved
IEC 61508
EN 62061
EN ISO 13849
EN 50178
