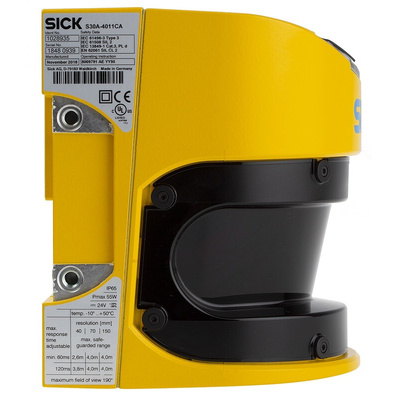

S30A-4011CA, Sick S3000 Laser Scanner, 49m Max Range, Лазерный сканер

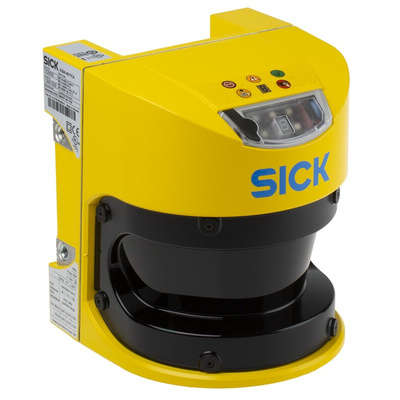

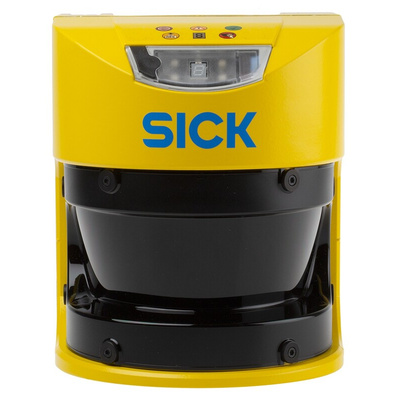

Sick S3000 - Advanced Safety Laser Scanner

SICK S300 Laser Scanner is a professional device that can be used for a wide range of applications such as protection of machines, operators and systems. A complete system guarantees safe and efficient operation and can mount both horizontally and vertically to protect hazardous areas, points and access points. SICK S3000 features a unique four zone protection system. All four protection zones and four warning fields are freely programmable using the software supplied with the device. This allows each laser scanner to be set up according to the unique requirements of each installation.

Features and Benefits:

• Simultaneous monitoring of 2 protection fields possible
• Modular concept allowing for expanding the systems
• Easy to install and easy to service
• Certified for vertical use for access control or entry/exit applications, as well as hand protection
• The selectable resolution makes it possible to adapt the devices
to a very wide range of application requirements
• Formation of host/guest system

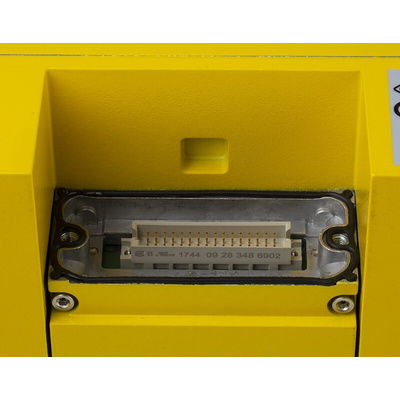

• Plug and play for device exchange (program memory in connection plug)
• Short response time (60ms minimum)
• 190° Scanning window
• 4 m radius for the safety field
• 49 m warning field
• 2 OSSD safety outputs, 1 warning field output, 1 diagnostic output
• 2 Control inputs, 1 reset input, 1 EDM input
• IP 65 approved

Typical applications:

• Production lines,
• Machining centres,
• Entry/Exit stations,
• Robot Cells,
• Freely moving vehicles,
• Narrow corridor vehicles,
• Tube bending machines,
• Automotive Industry
• Area protection

Approvals & Certification:

• Laser Protection class: 1 (21 CFR 1040.10 and 1040.11, DIN EN 60825:2001)
• IP Rating: IP 65 (EN 60529)
• Protection class: 2 (DIN VDE 0160, DIN EN 50178)
• Type: Type 3 (IEC/EN 61496-3)
• Safety Integrity Level: SIL2 (IEC/EN 61508)

SICK S3000 accessories (available separately):

• The connection cable - 271-495
• A programming cable which connects S3000 to a PC via a serial interface for configuration - 271-580
• UE10 Interface relay - 271-502
• Mounting Kit - 271-401

Note:

Installation and operation of this safety device must be in strict accordance with accompanying operating instruction.
