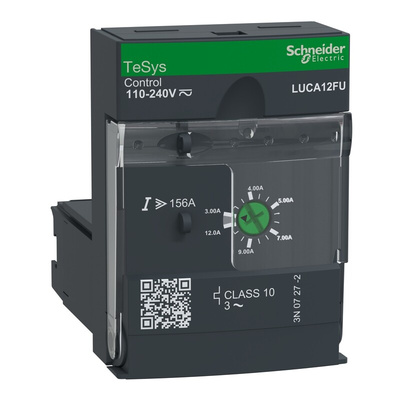

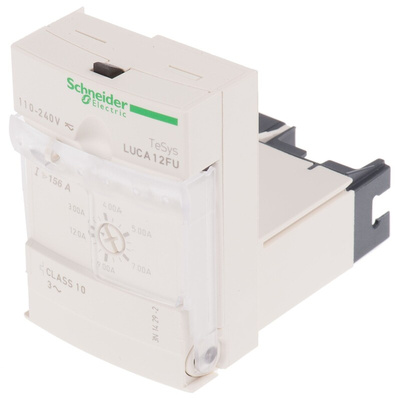

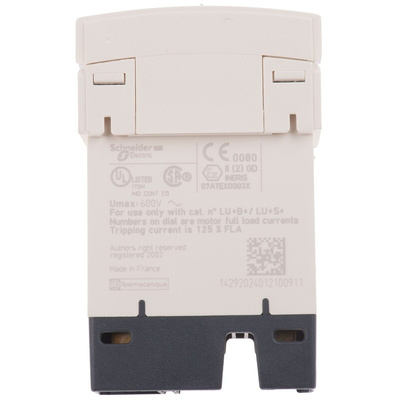

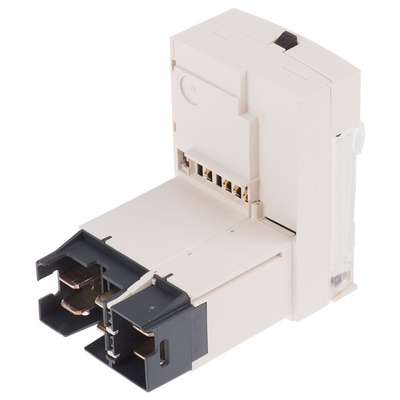

LUCA12FU, Schneider Electric DOL Starter, DOL, 9 kW, 690 V ac, 3 Phase, IP40, Пускатель

Standard Control Units

Ideal to satisfy the basic protection requirements for motor starters; thermal overload and short-circuit.

Protection against overloads and short-circuits
Protection against phase failure and phase imbalance
Protection against insulation breaks (equipment protection only)
Manual reset
Class 10 for 3-phase motors

Note

'For use with' refers to a compatible power base in amps.

Warning

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

Schneider Electric DOL Starter, 40 to 60Hz Network Frequency, 3W Heat Dissipation - LUC Series - LUCA12FU

For quick switching of your industrial motor, turn to this DOL starter from Schneider Electric. It connects your equipment directly to the power supply, delivering full line voltage at startup. This makes it suitable for machines that need fast acceleration at the initial phase. The unit has a power rating of up to 9kW, making it fit for use in heavy-duty settings. As an added advantage, it detects phase failure, which reduces the risk of abnormal vibration and overheating. An IP40 rating tells you this is a finger-safe option that's protected from objects larger than 1mm.

Features & Benefits

• Loses just 3W of power to heat during operation, making it an energy-efficient control solution
• 6kV rated impulse withstand voltage to handle power spikes without experiencing damage
• Plug-in mounting method is simple and doesn't involve complex tools, so saves time and hassle
• Light weight of 135g means it won't put a strain on your equipment

Applications

• Process and packaging equipment
• Construction sites
• Robotics systems

What temperatures can this DOL starter handle?

This unit works reliably in a temperature range between -25°C and +70°C, making it safe for use in demanding conditions.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option

Selection Guide

TeSys Model U Starter-controller Catalogue

LUCA12FU Data Sheet

LUCA12FU Datasheet

Product Environmental Profile

Instruction Sheet - LUCA12FU
