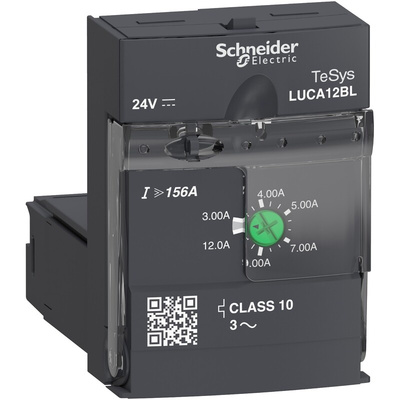

LUCA12BL, Schneider Electric DOL Starter, DOL, 9 kW, 690 V ac, 3 Phase, IP40, Пускатель

Schneider Electric TeSys Direct On-Line Starter Controller, 690V AC, 9kW - LUC Series - LUCA12BL

Choose this general-purpose motor starter from Schneider Electric's TeSys range for motors that run in one direction at a single speed. It controls ignition and switch-off and includes thermal overload and short-circuit protection. This plug-in module lets you assemble and wire the device before selecting your motor-protection parameters for ease of use. Reduced wiring means faster panel building times to improve the overall efficiency of your control system. This versatile motor starter is useful for a wide variety of direct on-line (DOL) starting applications.

Features & Benefits

• Plug-and-play functionality for improved flexibility and easy upgrading
• Includes protection against phase failure and phase imbalances for improved reliability
• Allows for fast return to service after a short-circuit fail to optimise productivity
• IP40 (ingress protection) rated enclosure that's protected against tools and wires larger than 1mm

Applications

• Pumps and turbines
• Medical and pharmaceutical industries
• Automotive industry

What are the main elements in a motor starter?

A motor starter consists of two main elements – a contactor and overload protection. The contactor controls the flow of electric current to a motor to repeatedly establish and interrupt an electrical power circuit. Overload protection ensures the motor doesn't draw too much current, which could otherwise result in burnout.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option

Selection Guide

TeSys Model U Starter-controller Catalogue

LUCA12BL Datasheet

LUCA12BL Datasheet

Product Environmental Profile
