LUCA05BL, Schneider Electric DOL Starter, DOL, 3 kW, 690 V ac, 3 Phase, IP40, Пускатель

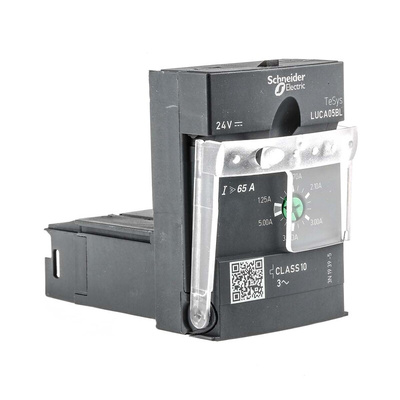

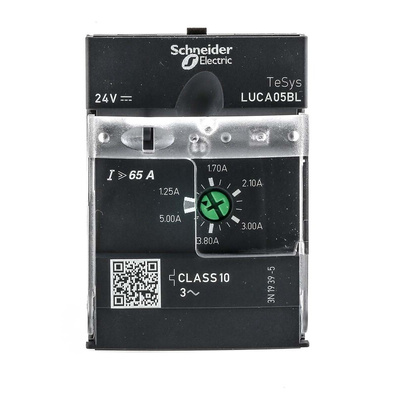

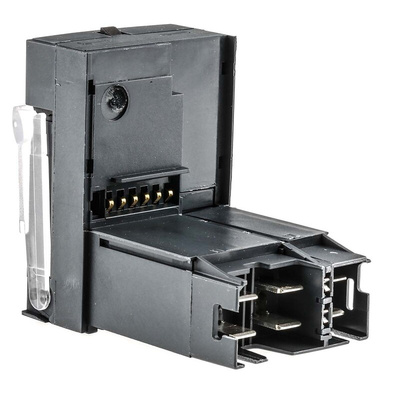

Schneider Electric TeSys 3-Phase Direct On-Line Motor Starter, 3kW, 690V AC - LUC Series - LUCA05BL

Protect motor starters from current overload and short circuits with this direct on-line starter from Schneider Electric's TeSys range. It covers all the basic protection requirements for motor starters and features a compact shape and robust design. The smart device stops phase imbalances and failures from damaging motors. It's resistant to shock and vibration, making it suitable for use in harsh industrial environments. You can safely use this component in the presence of other electronic devices, thanks to its immunity to electrostatic discharge.

Features & Benefits

• Fire-resistant up to +650°C for improved safety, so it's unlikely to ignite in the event of an electrical fire
• Easy-to-use plug-in mounting method for fast tool-free assembly
• Reliable heat dissipation to keep operating temperatures cool
• Can be wired before selecting motor-control parameters for convenience

Applications

• Textile industry
• Pulp and paper mills
• Petrochemical industry
• Food and beverage industries

Is this motor starter halogen-free?

Yes, this motor starter is halogen-free. This means it won't release potentially harmful toxic or corrosive gases in the event of a fire.

Schneider Electric TeSys U

The TeSys U is a modular system for motor control; it enables the user to create a customised solution for their control requirements, from a series of standard modules. The plug-in modules allow the assembly and wiring before the selection of motor protection parameters and control voltages, they can be created or changed in seconds by changing the plug-in modules. A host of DOL starting applications can be catered for.

• Faster design with fewer components needed


• Quicker panel build with faster assembly time and fewer wires per starter


• Space saving 45mm width up to 32A (even for reversing) allowing smaller panels


• Flexible and upgradeable with plug-and-play function modules


• Voltage and protection parameters can be determined after assembly and wiring


• Broad band electronic control unit provides improved overload protection with fewer components


• Expandable plug-and–play diagnostics


• Total co-ordination for fast return to service after a short circuit fault

Tesys model U is easy to select:

First choose a Power Base- 12A or 32A, direct on line or reversing. The power base includes 2 auxiliary contacts.
Then choose the plug-in protection module by motor full load current and control voltage required.
Additional plug in functions can be selected and added at any time.
The plug-in bases can use any LU9 type blocks see stock no. 493-8779 for base option
