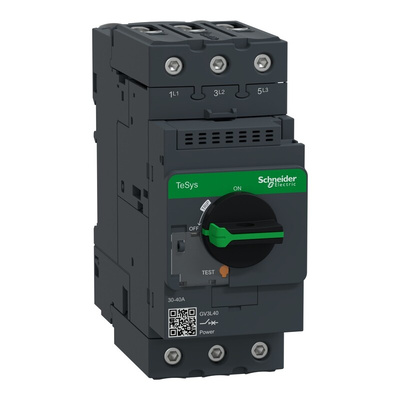

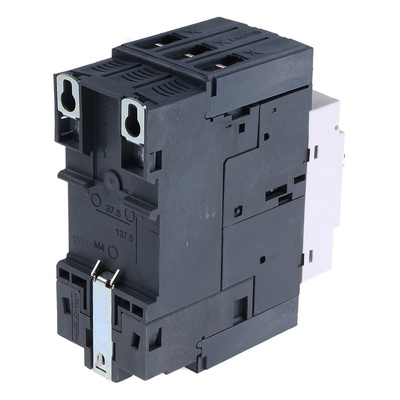

GV3L40, Schneider Electric TeSys Thermal Circuit Breaker - GV3 3 Pole 690V Voltage Rating DIN Rail Mount, 40A Current Rating, Автоматический выключатель

0272836
Номер производителя: GV3L40Производитель: Schneider Electric
Цена за шт.
79298.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Motor Circuit Breaker - GV3L

Thanks to its new power terminals, this range of GV3 magnetic circuit-breakers assures improved reliability of connections and is designed to maintain a constant tightening force which assures a strong, safe and long lasting connection in the most demanding environments.

Control and protection of motors from 5.5 kW to 30 kW
High breaking capacity:50 kA/400 V from 40 to 65 A and 100 kA/400 V from 25 to 32 A
3-position, padlockable, rotary knob
Trip test button on front face
Sealable flap for protection of thermal setting

Warning

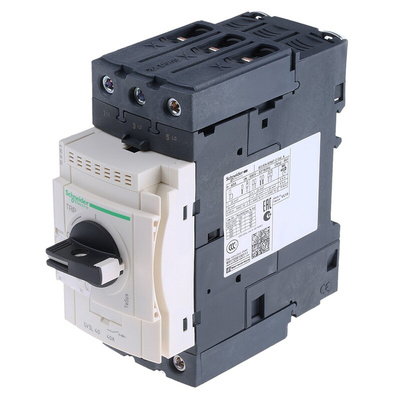

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

Schneider Electric Thermal Circuit Breaker, Everlink BTR Terminals, -20°C to +60°C Operating Temperature Range - TeSys Deca Series - GV3L40

Working with motors and in need of electrical protection? Opt for this thermal circuit breaker from Schneider Electric. It's a thermal-magnetic type that uses reliable bi-metallic strips to break the circuit. This makes it easy to reset and gives you a speedy tripping action to keep you and your equipment safe. The unit has high breaking capacity of 100kA at 230 to 240V, as well as an impressive power rating of up to 37kW. These features make it handy in high-load applications with powerful pumps. As it resists shock and vibration, this is a great shout for demanding industrial settings.

• 3-pole device lets you control up to 3 connected devices at once
• Trip test button on the front makes light work of testing
• Lockable rotary knob prevents unauthorised tampering
• Operating temperature range of -20°C to +60°C for suitability with harsh environments
• Snaps onto a 35mm DIN rail for easy mounting

Applications

• Telecommunications networks
• Process control systems
• Industrial automation

What does this unit's GV3 classification mean?

The GV3 classification means this breaker uses Everlink BTR screw terminals that let you apply a consistent tightening force. This makes it a breeze to achieve strong, lasting electrical links in tough environments.

Техническая спецификация
pdfTeSys GV2 /GV3 Panorama Brochure
pdfGV3L40 Datasheet
pdfProduct Environmental Profile
pdfInstruction Sheet - GV3 Series
pdfCatalogue - TeSys
Верификация Better World:
Green Premium
Вид монтажа:
Крепление на DIN рейку
Габаритная ширина:
55мм
Габаритные размеры:
132 x 55 x 136mm
Диапазон:
TeSys
Длина общая:
132мм
Количество полюсов:
3
Номинал тока:
40A
Номинальное напряжение:
690В
Номинальное напряжение переменного тока:
690В
Общая глубина:
136мм
Отключающая способность при максимально допустимом напряжении:
5 кА
Применение:
Motors
Размыкающий механизм:
Thermal-Magnetic
Серия:
GV3
Тип автоматического выключателя:
Thermal Magnetic Circuit Breaker
Тип контактов терминала:
Винт
Товар Better World:
Да
Ширина:
55мм
