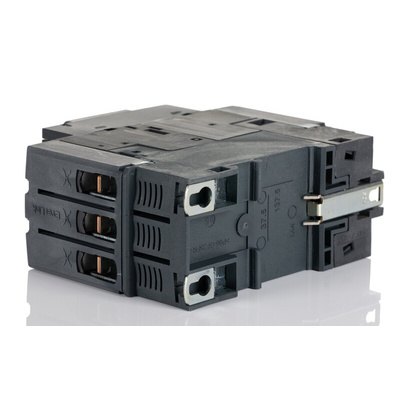

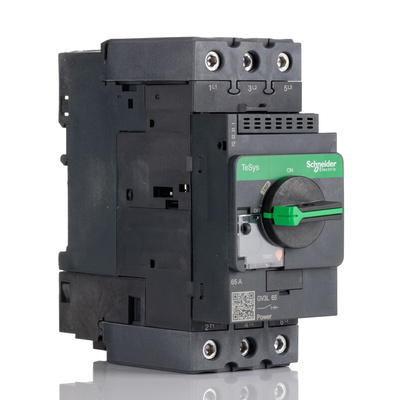

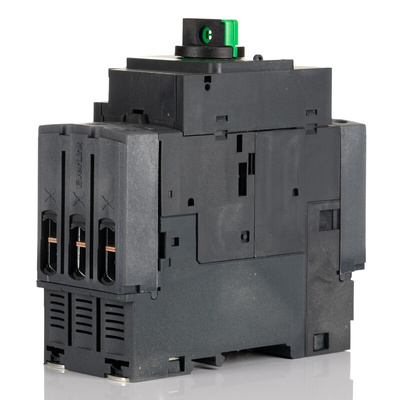

GV3L65, Schneider Electric TeSys Thermal Circuit Breaker - GV3 3 Pole 690V Voltage Rating DIN Rail Mount, 65A Current Rating, Автоматический выключатель

0272858
Номер производителя: GV3L65Производитель: Schneider Electric
Цена за шт.
93132.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Motor Circuit Breaker - GV3L

Thanks to its new power terminals, this range of GV3 magnetic circuit-breakers assures improved reliability of connections and is designed to maintain a constant tightening force which assures a strong, safe and long lasting connection in the most demanding environments.

Control and protection of motors from 5.5 kW to 30 kW
High breaking capacity:50 kA/400 V from 40 to 65 A and 100 kA/400 V from 25 to 32 A
3-position, padlockable, rotary knob
Trip test button on front face
Sealable flap for protection of thermal setting

Warning

Schneider are in the process of amending the colour of the TeSys range, from White to Black. This means that the stock you receive could be either of these colours. Please be assured that the colour change in no way affects the Fit, Form or Function of the product.

Schneider Electric Thermal Circuit Breaker, 6kV Impulse Withstand Voltage, IP20 Rating - TeSys Deca Series - GV3L65

For sure-fire safety when you're running motors, turn to this thermal circuit breaker from Schneider Electric. Its 55kW rating makes it a high-powered pick that's suitable for use with load-drawing industrial machinery like pumps or hydraulic devices. A breaking capacity of 100kA at 230/240V AC means it can protect you and your equipment against common voltage and current faults. You can count on it to work reliably too, thanks to its bi-metallic tripping mechanism. As a GV3 type, this product comes with Everlink BTR screw terminals that help create robust electrical connections that take the strain in challenging environments.

• 6kV impulse withstand voltage to protect you and connected devices against voltage surges
• IP20 approval indicates the case is touch-safe
• Operates at altitudes up to 3000m for reliable performance in challenging settings
• Resists shock and vibration, so it's safe for industrial settings with moving machinery

Applications

• Vehicle electrics
• Transformers
• Magnetic valves

What temperatures can I use this breaker in?

Thanks to its broad operating temperature range of -20°C to +60°C, you can trust this breaker to serve you well in tough environments.

Техническая спецификация
pdfTeSys GV2 /GV3 Panorama Brochure
pdfGV3L65 Datasheet
pdfProduct Environmental Profile
pdfInstruction Sheet - GV3 Series
pdfCatalogue - TeSys
Верификация Better World:
Green Premium
Вид монтажа:
Крепление на DIN рейку
Габаритная ширина:
55мм
Габаритные размеры:
132 x 55 x 136mm
Диапазон:
TeSys
Длина общая:
132мм
Количество полюсов:
3
Номинал тока:
65A
Номинальное напряжение:
690В
Номинальное напряжение переменного тока:
690В
Общая глубина:
136мм
Отключающая способность при максимально допустимом напряжении:
5 кА
Применение:
Motors
Размыкающий механизм:
Thermal-Magnetic
Серия:
GV3
Тип автоматического выключателя:
Thermal Magnetic Circuit Breaker
Тип контактов терминала:
Винт
Товар Better World:
Да
Ширина:
55мм
