UC232A USB-RS232, Mitsubishi RS232 USB A Male to DB-9 Male Converter Cable

Interconnect Cable

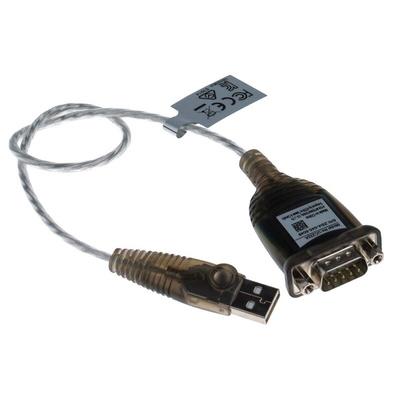

UC-232A USB Serial Converter Cable

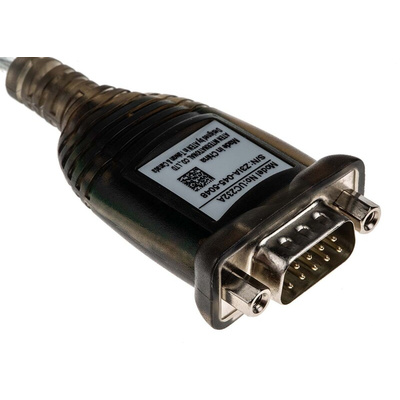

The UC-232A is a USB cable adapter that provides an external plug and play RS232 serial connection for various applications that support USB specification. It comes with a standard DB-9 male connector for the peripherals to plug into and an attached 35 cm USB cable with type A plug for connecting to a PC. The cable adapter eliminates the setup hassle found with traditional serial port connections. It does so by making the USB interface transparent to the peripherals which allows them to easily interface with the USB. The UC-232 supports energy saving suspend and resume operations.

Features and Benefits

Connector – Male USB A to Male RS232 serial port
Full compliance with USB specification V1.1
Supports the RS232 serial interface
Supports automatic handshake mode
Over 230 Kbps data transfer rate
Supports remote wakeup and power management
No IRQ required
Orange LED when data transferring
35 cm cable
Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters

Typical Applications

The UC-232A USB cable can be used with frequency converter products such as FR-D700 and FR-F700 series. The UC232A is a USB to serial port converter and provides PCs, notebook PCs and handheld computing devices using USB an external PnP RS232 port.
FAQ’s:
How does USB cable work?
The USB cable (Universal Serial Bus) is the easy-to-use, standardised connector that allows for the integration of different types of devices with a computer. A USB cable consists of four wires that are used for transferring separately power and data. A USB cable allows for communication between devices in both directions.

Note

Software not included
