RS PRO Illuminated SPST, On-Off Rocker Switch Panel Mount, Клавишный переключатель

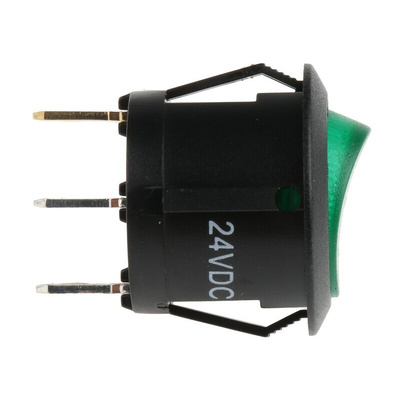

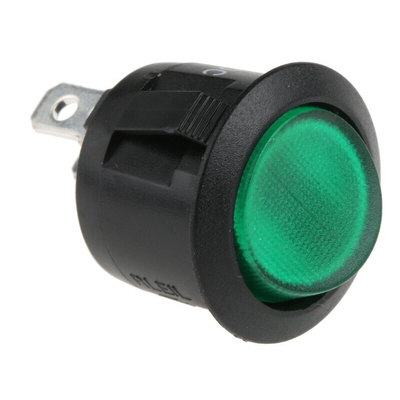

RS PRO SPST Non-Latching Green Illuminated Rocker Switch 24VDC

A robust and reliable illuminated non latching rocker switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with an impact and flame retardant Nylon 66 case featuring a tough Polycarbonate button for a rocker switch fit for industrial and commercial environments.
The RS PRO illuminated rocker switch features a black body with green illumination when in the on position and Silver plated Copper terminals for easy panel mounting in a 20mm panel cut out.
The green on off switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life creating a hard wearing and reliable rocker switch fit for a wide range of environments and applications.

Features and Benefits

• Illuminated green rocker switch


• Non latching


• On-Off action


• SPST contact configuration


• Flame retardant Nylon case


• Polycarbonate button


• Operational force of 300 to 600 gf

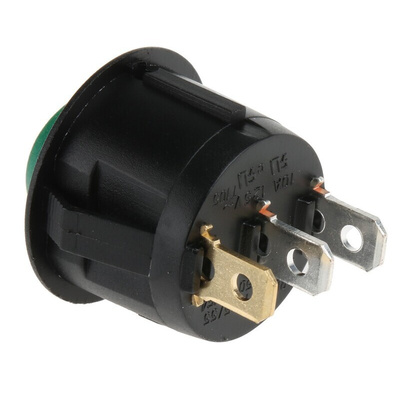

• Silver plated Copper terminals


• Quick connect terminals (4.8 x 0.8mm)


• Insulation resistance of 500 Vdc @ 100 mΩ


• Silver contacts


• Contact diameter of 2.3mm


• Panel mount


• Operational life of 10,000 cycles

Splash Proof Cap

For a clear splash-proof protective cap providing a IP55 sealed rating please see RS PRO 793-2569

Standards and Approvals: VDE, UL, RoHS compliant

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Rocker Switch Data Sheet
