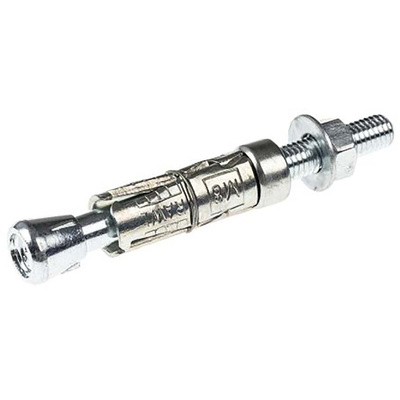

R-RBP-M06/25W, RawlPlug Steel Masonry Anchor M6 x 80mm, 12mm Fixing Hole

RawlPlug R-RBP Rawlbolt™ Expanding Shield Anchor Bolt Projecting Fixings.

From RawlPlug this is the R-RBP Rawlbolt expanding, bolt projecting mechanical shield anchor for use in cracked and non-cracked concrete plus meeting the recognized industry standards ETA-11/0479, plus the R-RBP is recommended for fire-resistant applications. The RawlPlug Rawlbolt is the original mechanical anchor with all others produced after the Rawlbolt launch. The sleeve of the rawlbolt is expanding, in 3-pieces providing you with maximum safety and optimal load and can be used in any material. Various diameter of Rawlbolt are available from M6 to M20 and the R-RBL is mainly for use in cracked and con-cracked concrete (ETA option 1), hollow core slabs, flooring blocks and ceramics. This mechanical shield anchor loose bolt is truly all-purpose making it one of the most popular loose bolts available.

Features and Benefits Masonry Fixings.

• R-RBP Rawlbolt Mechanical Shield Anchor Plug Fixing.


• Bolt projecting.


• All purpose.


• Recommended for fire resistance applications.


• Expanding (3-pieces expansion anchor).


• Maximum safety and optimal load.


• Diameter available from M6 to M20.


• For use in any substrate.


• For use in cracked and non-cracked concrete (ETA option 1), hollow core slabs, flooring blocks and ceramics.

Typical R-RBP Rawlbolt Mechanical Shield Anchor Bolt Projecting Fixings Applications.

• Roller shutter doors.


• Fire doors.


• Structural steel-work.


• Security grills.


• Heavy machinery.


• Pipework and ductwork supports.

Material the R-RBP Rawlbolt Bolt Projecting Anchors are Compatible with?

• Cracked concrete C20/25-C50/60.


• Non-cracked concrete C20/25-C50/60.


• Unreinforced concrete.


• Reinforced concrete.


• Solid clay brick ≥ 20MPa.


• Hollow Lightweight Concrete Block LAC 5 ≥ 5MPa.


• Hollow Sand-lime Brick ≥ 15MPa.


• Concrete hollow floor block (Teriva).\t


• Hollow-core Slab C20/25.


• Hollow-core Slab C30/37-C50/60.

R-RBP Rawlbolt Bolt Projecting Anchors Plug Fixings Available?

• Stock number 279048, M6, 12 mm x 80 mm.


• Stock number 279054, M8, 14 mm x 75 mm.


• Stock number 279060, M10, 16 mm x 105 mm.


• Stock number 279076, M12, 20 mm x 125 mm.


• Stock number 525357, M6, 12 mm x 65 mm.


• Stock number 525363, M6, 12 mm x 115 mm.


• Stock number 525379, M8, 14 mm x 90 mm.


• Stock number 525385, M8, 14 mm x 125 mm.


• Stock number 525391, M10, 16 mm x 90 mm.


• Stock number 525408, M10, 16 mm x 135 mm.


• Stock number 528283, M12, 20 mm x 110 mm.


• Stock number 528299, M12, 20 mm x 170 mm.

How to use the R-RBP Rawlbolt Loose Bolt Anchors?

• Drill a hole (have pre-drilled hole ready) ensure that it is the correct diameter and depth needed.


• Clean out the drilled hole removing all debris and dust (important to thoroughly remove everything, use a blow-pump).


• Remove the pre-assembled nut and washer and insert the anchor into the drilled hole.


• Gently tap into the drilled hole till flush with the surface.


• Position the fixture over the projecting bolt.


• Add the washer and nut then tighten carefully, only to the recommended torque.

Standards

ETA-11/0479

Fasteners Selection Guide 56 Pages

Datasheets RBP Shield Anchor
