RS PRO 275 piece Plain Metric Dowel Pin Kit, Комплект шплинтов

Tapered and Parallel Dowel Pin Kits

These RS PRO kits contain dowel pins which are small and cylindrical and are a type of industrial fastener which can join two or more items together.
Options available include the following sizes:
279-515 - 275 piece metric parallel dowel pin kit
279-509 - 345 piece metric taper dowel pin kit
279-521 – 350 piece imperial parallel dowel pin kit

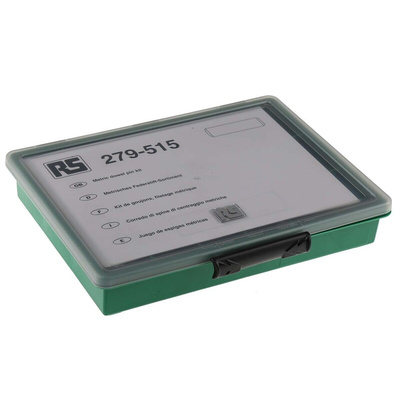

Supplied in a polypropylene storage box
Ideal for service and maintenance departments

Typical Applications:

Dowel pins can be used in various applications such as tool rooms for pivots, spindles and locating pins. They are also popular in automotive industries and furniture construction. These steel pins can be inserted into holes to hold the parts of an assembly together by using friction. Dowel pins can hold two or more parts together in a fixed alignment using a very tight fit to keep them firmly in place.

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO 275 Piece Tapered and Parallel Dowel Pin Kit

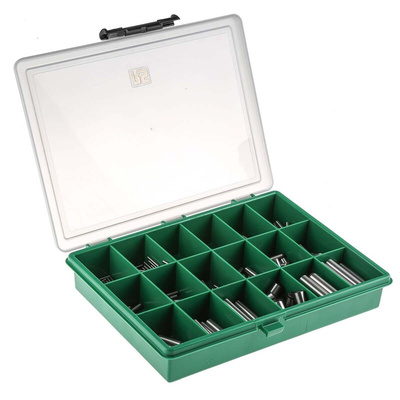

RS PRO metric dowel pin kit which contains 275 pieces of pins with plain finish. These dowel pins are supplied in a PP storage box and contain various sizes of pins which is perfect for service and maintenance departments.

Features and Benefits:

Supplied in a polypropylene storage box
Diameter ranging from 2.5 to 10 mm
Length ranging from 10 to 50 mm
Dowel pin kit - wide selection of pins for all your securing needs
Metric system of measurement
Specification DIN 6325

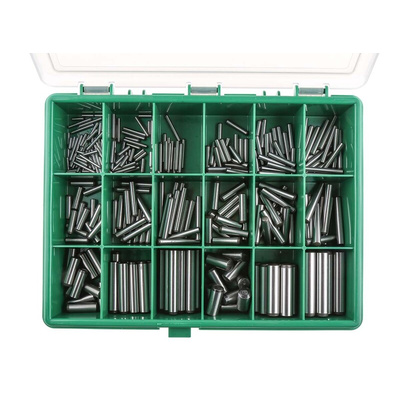

Kit contains (Diameter x Length x Qty):
2·5 dia. x 10 mm x 25
2·5 dia. x 12 mm x 25
2·5 dia. x 20 mm x 20
3 dia. x 24 mm x 15
3 dia. x 12 mm x 25
3 dia. x 20 mm x 20
4 dia. x 32 mm x 15
4 dia. x 24 mm x 20
5 dia. x 20 mm x 15
5 dia. x 28 mm x 15
5 dia. x 36 mm x 12
6 dia. x 24 mm x 12
6 dia. x 40 mm x 10
8 dia. x 24 mm x 10
8 dia. x 40 mm x 10
8 dia. x 50 mm x 8
10 dia. x 24 mm x 10
10 dia. x 40 mm x 8
