RS PRO Through Beam Photoelectric Sensor, Block Sensor, 10 m Detection Range, Фотоэлектрический датчик

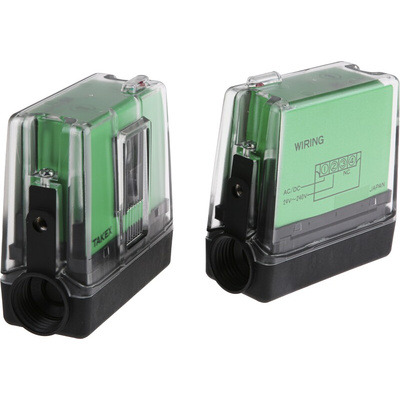

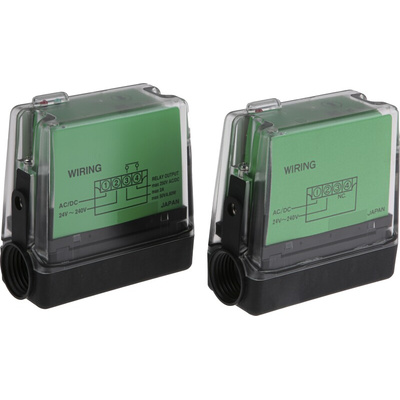

RS PRO Through Beam (Emitter and Receiver) Photoelectric Sensor with Block Sensor, 10 m Detection Range

Need to control the placement of components on an assembly line? Use this photoelectric sensor from RS PRO. It communicates with a central control panel, keeping your automated processes running smoothly.


The sensor is easy to inspect and maintain as its upper section is removable, meaning there's no need to detach any wiring from the base. Its IP66 (Ingress Protection) rating means it's well-protected from dust and water sprays, making it safe to use in industrial settings, such as aggregate processing plants. Its screw-in terminals provide easy yet secure electrical connections. This type of sensor is frequently used in recycling centres to detect items on a conveyor belt.

Features and Benefits

• Detection range of 10 m


• Through beam (emitter and receiver) detection type


• Four terminal screw electrical connection


• Acrylic housing material


• Ingress Protection (IP) rating of IP66


• Maximum current of 2 A


• Maximum voltage of 250 V AC and 240 V DC


• Operating temperature range of -25ºC to +55ºC


• LED (light-emitting diode) optical technology


• Relay output type


• Response time of 5 ms (microseconds)


• Block sensor style


• Meets CE (Conformité Européenne) and RoHS (Restriction of Hazardous Substances) standards


• Screw terminal type
