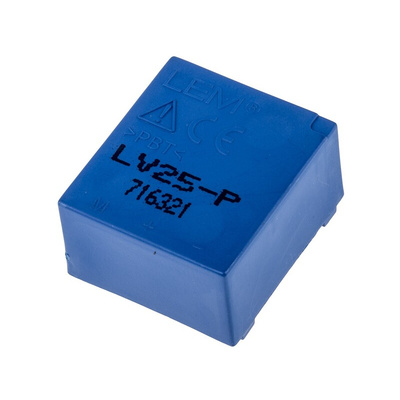

LV 25-P, LEM LV Series Current Transformer, 14A Input, 14:1, 25 mA Output, 12 → 15 V, Преобразователь тока

PCB Mount

For the electronic measurement of currents, DC, AC, pulsed, providing galvanic separation between the primary circuit and the secondary circuit.

A Hall effect device, which provides galvanic isolation between primary and secondary circuits
Self extinguishing plastic case
Ideal for measuring voltages associated with a.c. and d.c. impluse circuits
An external resistor must inserted in series with the primary circuit to measure a voltage
Instantaneous output
Suitable for d.c. power supplies, UPS's, instruments, metering and relay systems
Closed loop operation

Features & Benefits

Self - extinguishing plastic case
Ideal for measuring voltages associated with AC/DC impulse circuits
An external resistor must be inserted in series with the primary circuit to measure a voltage
Instantaneous output
Suitable for d.c. power supplies, UPS's, instruments, metering and relay systems
Closed loop operation
Insulated plastic case
High level of accuracy
Linearity
Low thermal drift
High bandwidth
External interference immunity
Common mode low disturbance

PCB Mounting Hall Effect Voltage Transducer
