703590/281-8800-350000-23-00/, Jumo IMAGO 500 PID Temperature Controller, 144 x 133mm 2 (Analogue), 6 (Binary) Input, 3 Output Analogue, 110 →, Регулятор температуры

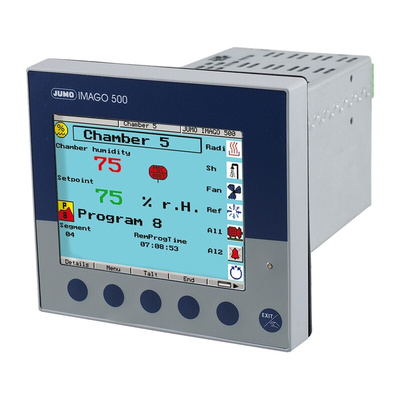

Jumo Temperature Controller

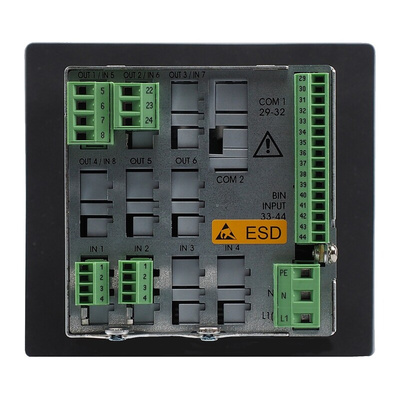

The Jumo temperature controller is a 1/4 DIN, temperature controller that belongs to the 500 series. It has up to 8 controller channels or 4 program channels. This. It has a width of 92mm and height of 92mm. It is a multi-channel process and program controller. Additionally, it has 2 universal input (configurable), 2 relays (make contacts) and 1 analogue output. It has an operating supply ranging from 110VAC to 240VAC. The electrical connection at the rear of the instrument is established via the plug-in screw terminals.
The Jumo IMAGO 500 series temperature controller has supply voltage ranges from 110VAC to 240VAC. This controller has a width of 92mm and a height of 92mm(1/4 DIN) device. It is a multi-channel process and programs 2 controller channels. Additionally, it has 2 universal input (configurable), 2 relays (make contacts) and 1 analogue output. The electrical connection at the rear of the instrument is established via the plug-in screw terminals.

Features and Benefits

16 limit comparators
50 programs with 1000 sections, dynamically managed

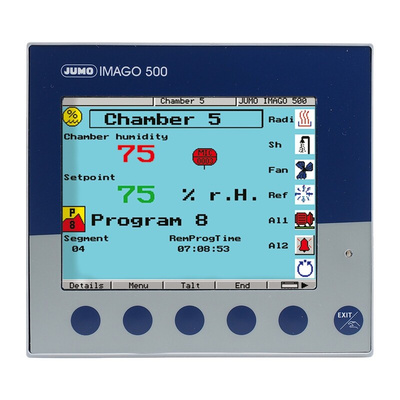

Brilliant 5in colour display with 27 colours
Freely configurable screen masks
Input and output modules and interface modules can be retrofitted
Process and program controller with 2 channels
Sampling time from 50ms
Self-optimisation with vibration and step response method

Certifications

CAN/CSA-C22.2 No. 61010-1
E201387
EN 60529
Front IP65/rear IP20
UL 50 - Type 1
UL 61010-1
UL approved

703590 Datasheet

Brochure Chemical Industry

Brochure Control

Brochure Dairy

Brochure Food Technology

Brochure Heating & AirCon Industry

Brochure Industrial Furnaces

Brochure Meat Processing

Brochure Plastics & Packaging

Brochure Shipbuilding Industry

Interface Description_Modbus

Interface Description_PROFIBUS-DP

Operating Manual
