RS PRO Beam Clamp, maximum load 45kg, 18mm

RS PRO Beam Clamp, Maximum Load 45 kg, 18 mm

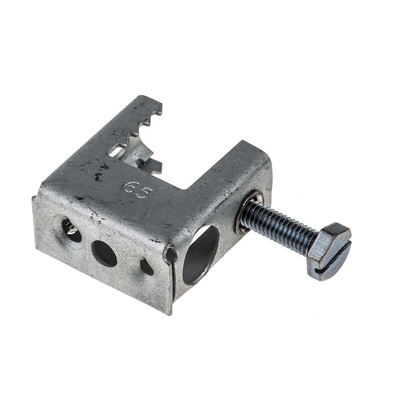

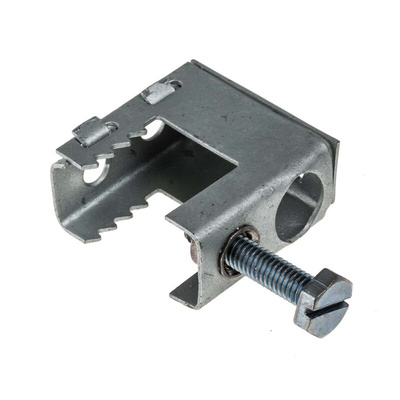

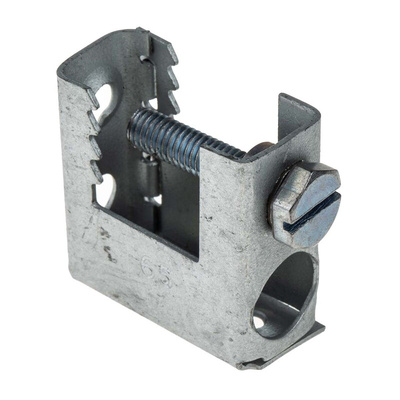

This threaded rod clamp from RS PRO is suitable for hanging moderately heavy loads from a beam or girder. It offers a secure fixing that will support up to 45 kg. The clamp's toothed jaw grips the girder firmly and it can be used on flanges up to 18 mm thick.
The clamp can be easily bolted onto the girder using a hex spanner or flat-blade screwdriver. The steel clamp is coated with a silver-coloured sacrificial zinc coating, which lets you use it both indoors and outdoors in humid and mildly corrosive environments without risk of it degrading. The coating is completely chromium-free, meaning it's safe to handle in the long term.
The clamp meets the Restriction of Hazardous Substances (RoHS) directive, so you can be sure it contains no more than trace levels of any hazardous substances. Clamps of this type are commonly used in the construction industry as anchor points for pulling loads onto trusses and beams.

Features and Benefits

• Made of steel
• Maximum flange thickness of 18 mm
• Hole diameter of 12.7 mm
• Maximum load of 45 kg
• Supplied in packs of 25
