0560 4101, Testo 410-1 NTC, Rotary Vane Anemometer, 20m/s Max, Measures Air Velocity, Temperature, Анемометр

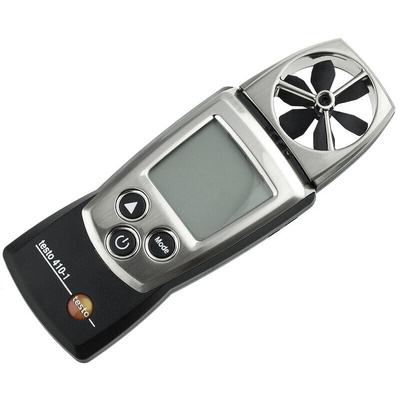

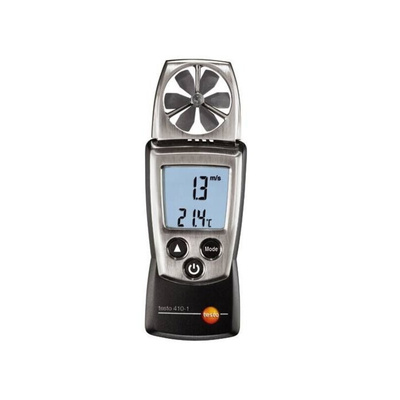

Testo 410-1 Pocket Anemometer

From Testo, the 410-1 rotating vane anemometer designed for measuring air velocity and air temperature. The pocket-sized meter provides instant, accurate on the spot readings at ventilation grilles and air outlets. Constructed from high-quality impact resistant materials the robust meter is ideal for HVAC engineers and technicians.

Compact in design, the handheld instrument features an in-built 40mm rotating vane which calculates the wind speed passing through the impeller. With a measuring range of 0.4 to 20 m/s, the 410-1 anemometer can even be used for low flow speeds. In addition, the 410-1 is able to simultaneously measure the air temperature thanks to the NTC sensor.

Operation is simple, just 3 control keys enable the user to easily scroll through and select the desired function. The 410-1 displays the units for air velocity and temperature as m/s, km/h, fpm, mph, kts, Beaufort, ° C, °F and wind chill. With an illuminated display, all recordings are clearly shown on the front screen, even in low light and dark conditions.

Suitable for both indoor and outdoor measurement applications the 410-1 includes a plug on protective cap for extra protection while not in use. An integrated wrist strap also provides extra security.

Features and Benefits

• Compact, hand-held design
• Ideal for indoor and outdoor applications
• Built-in 40mm rotating vane
• NTC Temperature sensor
• Simultaneous calculation of air flow velocity and air temperature
• Single-point averaging
• Hold function for recording current values
• Illuminated display
• Powered by 2 AAA batteries

Applications

Rotating vane anemometers are used to measure environmental conditions quickly and accurately. The information and data they provide are vital in a wide range of applications and environments. They are essential for reporting, forecasting and planning and more importantly health and safety. Some of the more common applications are

• HVAC
• Construction
• Roofing
• Sailing, boating and windsurfing
• Climbing and hiking
• Aviation, wind direction, airflow and gust
• Weather stations and meteorological studies

FAQ

Q - Is there a recommended replacement battery?
A - Yes, the Testo 410-1 anemometer uses Alkaline AAA batteries for its power supply. See RS part number 744-2209

Testo Rotary Vane Anemometer, 20m/s Maximum Air Velocity, Battery-Powered - 410 Series - 0560 4101

Use this rotary vane anemometer from Testo for accurate measurement of air pressure, temperature and humidity in industrial and commercial applications. It features an integrated negative temperature coefficient (NTC) probe that measures temperature using electrical resistance for a high degree of accuracy. This component has compact dimensions of 133 (length) x 46 (width) x 25mm (height) and a light weight of 110g, meaning it's portable and easy to handle. You don't have to plug it into a mains source as it's powered by a battery for added convenience.

Features & Benefits

• IP10 (ingress protection) rating for protection against solid objects larger than 50mm in size
• Windchill factor calculation feature for use in outdoor areas
• Display backlight for use in low-light or dark environments

Applications

• Office air conditioning systems
• Kitchen exhaust hoods

Can I use this device in high-heat environments?

This anemometer has a broad operating temperature range of -10°C to +50°C, making it suitable for use in both cold and hot environments.

Can I store data on this anemometer?

Yes, this anemometer has a hold function that allows you to record current measurement values.

testo 410-1 vane anemometer with built-in NTC air thermometer Data

Datasheet

Instruction Manual - Testo 410-2
