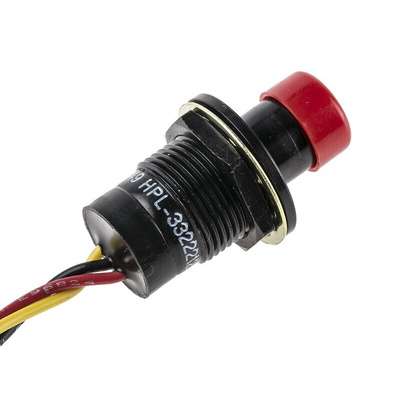

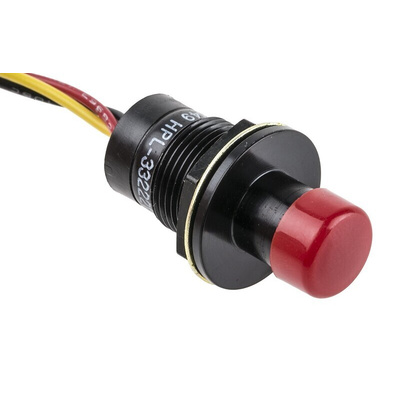

HPL-3322212, Otto Hall Effect Switch Button Through Hole, -40 → +85°C, Переключатель

Hall Effect Linear Output Switches

Revolutionary switches utilising Hall Effect technology, to provide the user with a reliable output, proportional to the travel of the button. These rugged switches are ideal for applications where a simple On/Off control is insufficient and a linear output is required in harsh environments. They enable an operator to control the motion of a device, as well as the speed of the movement, making them ideal control devices for valves, variable speed drives, as well as industrial control of heavy equipment and material handling applications.

Programmable outputs of 0.5 to 4.5 Volts
Front mounting with 5/8" thread
Available with either black or red actuator buttons
Continuous current output 1 mA max
Reverse voltage protection -5 V max.
Button travel: 0.14 to 0.16 in.
Operating force: 2.0 ± 0.2 lbs
Button material: thermoplastic

HPL Series Hall Effect Linear Output Pushbuttons Data Sheet
