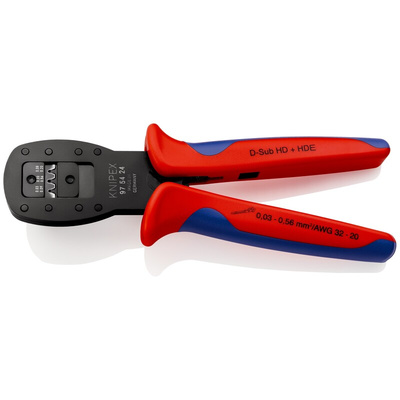

97 54 24, Knipex Hand Ratcheting Crimp Tool for D Sub HD 20 Contacts, D Sub HDE Contacts, 0.03 → 0.56mm² Wire, Обжимные клещи

Micro-connector crimping pliers with parallel crimping

Features and benefits

- Parallel crimping motion, to meet the particularly stringent requirements of micro-connectors
- Amplified force due to toggle gearing for less tiring work
- High-quality repeat crimping thanks to the integrated lock (automatic release mechanism)
- Crimping pressure precisely defined (calibrated) at the factory, also adjustable
- Optimum force transmission through lever for fatigue-reducing operation
- Low weight
- Compact design
- Ergonomic handles
- Capacities mm² / AWG : for D-Sub; HD 20; HDE micro connectors - Connectors from 0.03 to 0.56 mm² - AWG 32 to 20
- Material: Special grade chrome vanadium electrical steel, oil quenched

Typical applications

Crimping pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Crimp shop

Product Maintenance

- To maintain proper operation and long service life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
- The setting of the crimping die ranges should also be checked. - Adjustment of the pressure setting pin is necessary when the tool preload decreases significantly.

*Use a light non-mineral oil
