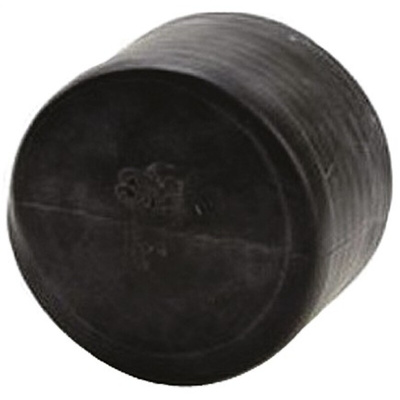

804530, 3M End Cap Black, Rubber, 30.1mm

3M EC series cold shrink end caps

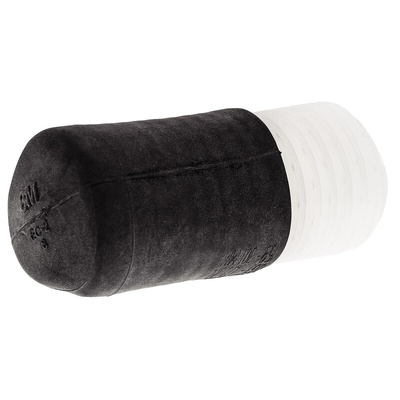

From 3M, these cold shrink end caps are moulded in black EPR, are UV-resistant and are pre-expanded on an applicator ring for easy application on-site or in storage areas, without the need for grease, tools or a torch; they ensure a reliable seal.

Features and Benefits

• Convenient cold shrink application
• Excellent protection
• Economic and safe cable management solution

Applications

• They provide excellent resistance to various chemical and atmospheric agents (ultraviolet light, ozone) as well as to abrasion and deformation.
• Used to block moisture penetration in all types of cables waiting to be connected or used in trenches, along roads or on cable drums or sheath ends.
• Mechanical protection of cable ends.

Available in this series:

• 307-803 is a EC-3 Cold Shrink End Cap
• 307-932 is a EC-2 Cold Shrink End Cap
• 307-960 is a EC-1 Cold Shrink End Cap

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M Cold Shrink Boot, Moisture and Fungus Resistant, Tool-Free Installation - EC Series - 804530

Want to cover cable ends securely without getting heat involved? Choose this cold shrink boot from 3M. It contracts when removed from its core and positioned over the end of a cylindrical object. Once in place, it seals tightly to keep out moisture and shield against knocks and scrapes. This adaptable end cap suits cables between 15.9 and 30.1mm in diameter, so it offers wide compatibility.

Features & Benefits

• Suits harsh environments as it's made of rubber that adapts to freezing or overheating without degrading
• Resists fungus, acids, alkalis and ozone so safe for demanding industrial applications
• Manual installation means no need for tools, mastic or tape

Applications

• Plumbing
• Oil and gas networks
• Pneumatic systems

How robust is this end cap?

As it's made of robust rubber with a tensile strength of 1400psi, elongation of 750% and tear resistance of 150pli, you can rest assured this hardwearing product is built to last.

Cold Shrink EC-Series End Caps Data Sheet
