BW 70.18 230V, Muller BW70 Hour Meter Counter, 5 Digit, 230 V ac, Счетчик часов

Muller Hour Meter

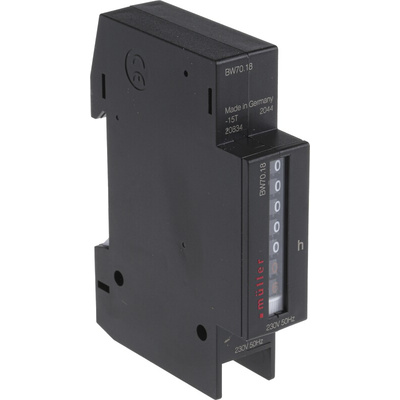

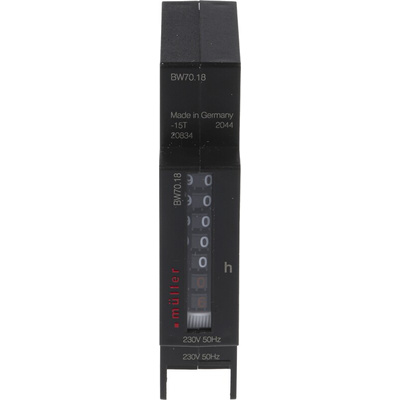

The Muller BW70 series hour meter is a 5 digit analogue display, single module, DIN rail mount type, elapsed device. It has a supply voltage rating of 230VAC. It has an operation indicator with a fast running wheel and digits height of 2.6mm. It has a meter accuracy of 0.01hours.

Features and Benefits

Non-resettable
Flush mount dimensions are 45mm x 17.5mm
Compact form
No terminal cover
Screw terminals (pull-up type)
Touch proof connections
Counter capacity of 99.999 hours
Measurement range is between 0 and 99999
Operation temperature ranges between -15°C and 55°C

Applications

Measuring of operating hours in control cabinets and plants
Operating hours of pumps and machines

Certifications

IP50 rated
DIN EN 60529

Hour counters BW/BG 70.18 - Datasheet
