RS PRO Momentary On-Off Foot Switch - Die Cast Aluminium Case Material, Привод

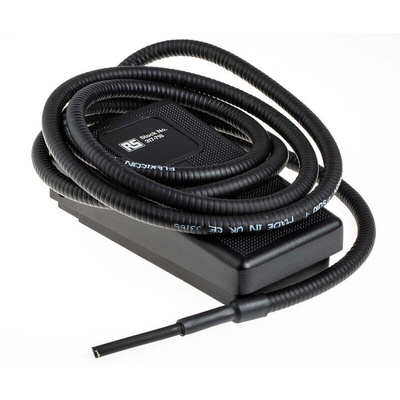

RS PRO Heavy Duty Foot Actuator for Air switch

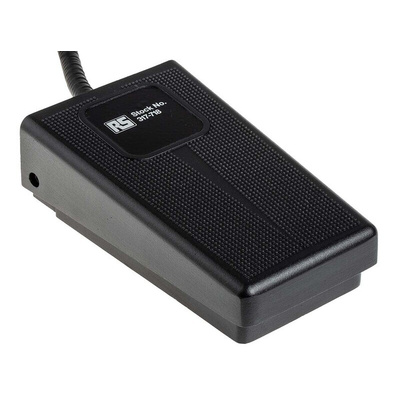

RS PRO robust diecast aluminium foot actuator foot switch in black finish. The top has a diamond cut surface affording good grip. Foot switches are commonly used on large machinery were hand operated switches are a safety concern. This foot controller pedal is ideal for various applications.

RS PRO offers a range of footswitches and accessories to meet your requirements. The range has been RS approved meaning great value for money and high-quality you can rely on.

Features and Benefits:

Industrial footswitch - ideal for OEM applications

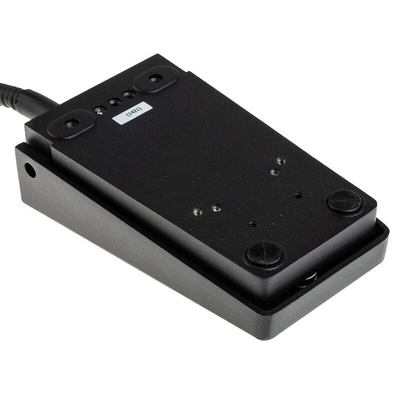

Anti-skid feet – to keep in place when using the foot switch
Hands free control - allow the operator greater freedom of movement
Mechanical Life 5x104 Operations
Operating temperature range -10°C to +40°C
Low profile to reduce operator fatigue
Bellows actuator

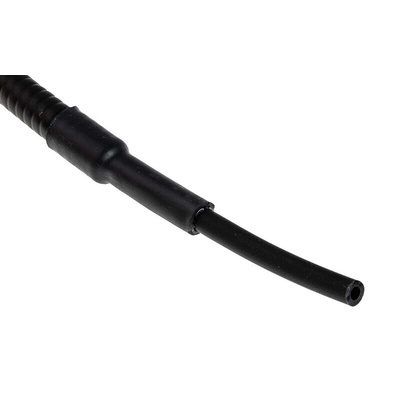

2 metres of 3mm I/D tubing with reinforced conduit
Die-cast aluminium construction
Sealed to IPX7
Dimensions: 94x46x152 mm
Weight: 0.475kg

Typical Applications:

Foot switches are commonly used in applications where hands-free control is more practical or safer. Foot controllers can be found on:
Industrial machinery and smaller power tools
Hospital beds
Dentist Chairs
Lamps

This heavy-duty foot actuator foot switch is ideal for remote switching in harsh environments where durability is needed.

Suitable for use with various air switches including: - 316-951, 319-708, 319-714, 319-720, 319-736, 319-742, 319-758

FAQs
Why would you use a footswitch?
As these switches are operated by the person’s feet, this means that their hands are free so therefore allows the individual to multitask.

Do these footswitches come with a guard?
No, a protective guard is not supplied, but you can purchase a protective guard separately, please view RS 125-0870.

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Foot Actuator

Actuators, Switch Elements, Tubing & Accessories

The air operated switch system offers enhanced safety in hazardous areas by allowing remote operation of electrical circuits.
The actuator is a bellows which, when compressed moves air down the air tubing to the switch element. This compressed air then expands a bellows in the switch, which operates the electrical contacts.
When used in wet environments or where electrical switching would be dangerous due to arcing, the switch and all electrical wiring can be located outside the hazardous area giving the operator total electrical isolation for the equipment.
Such applications include: Battery charging rooms, laboratories, garages, or wherever explosive gases, vapours or powders may exist.

When assembled the air switch and actuator form a sealed system, therefore temperature variation will cause pressure changes, which can in extreme cases affect the performance of the switch. To prevent this the total volume of the system must be kept below a critical value for a given temperature range and, to this end, a maximum length of air tubing (and hence volume) can be given for any combination of switch and actuator.
The additional data tables give these lengths in metres; for moderate and extreme temperatures.
