H8553VBNAA, Arcolectric Illuminated Double Pole Single Throw (DPST), On-Off Rocker Switch Panel Mount, Клавишный переключатель

Min. Illuminated Rocker Switches

A range of miniature illuminated and non-illuminated rocker switches designed for panel mounting. With a choice of red or green illumination, these double pole latching switches are suitable for an array of applications. Once a 19.3 x 12.9 mm cut-out is made, the DPST on-off rocker switches simply snap-in to the panel and is retained securely. These robust switches are ideal for repair, as well as new prototypes and designs.

Features and Benefits

• 250 V ac rated
• High in-rush tolerance 85A to EN61058-1
• The option of red or green illumination
• Non- illuminated with I/O marking
• Ergonomically curved actuator
• Connection via 4.8 x 0.8 mm quick connect blade terminals
• DPST switch configuration
• 19.3 x 12.9 mm miniature panel cut-out

Applications for miniature rocker switches

Rocker switches are one of the most frequently used electrical switches in the market today. With a simple design and easy operation, rockers provide flexibility and reliability. Some of the most likely applications are:

• Panel building
• Domestic appliances, kettles, coffee machines showers
• Power supplies
• Tools and workshop machinery
• White goods
• Computers and peripherals

FAQ

• Are the miniature rocker switches easy to connect?

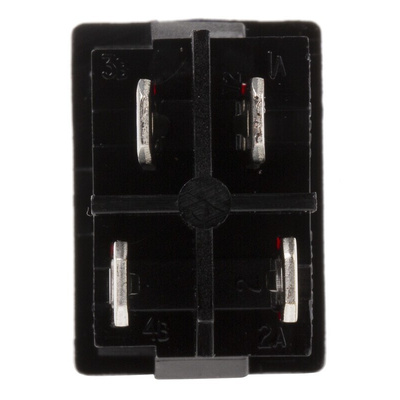

Yes, as the DPST rocker switches have male quick connect 4.8 x 0.8 mm tab terminals at the rear so the connection is easy. Simply select the appropriate red, yellow or blue female push on receptacle connectors according to wire size required.

• Part number 228-4581 is a black non-illuminated rocker switch with I/O marking

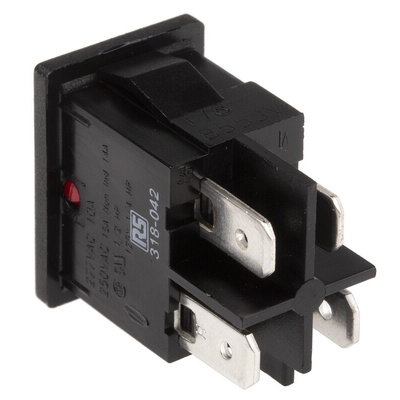

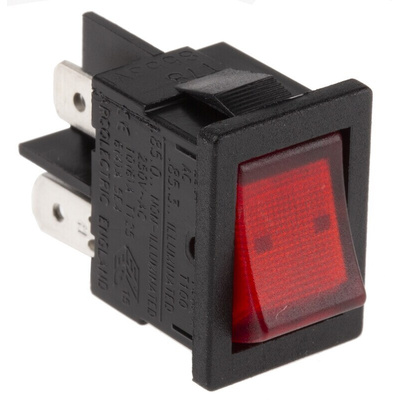

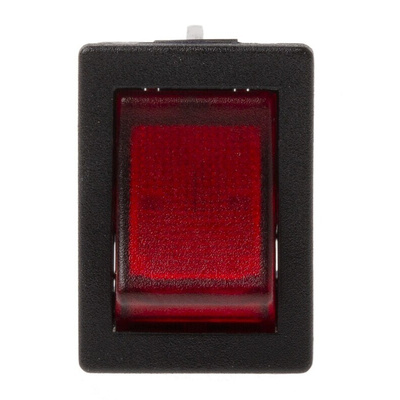

• Part number 318-042 is a red illuminated rocker switch with a plain actuator
• Part number 318-058 is a green illuminated rocker switch with a plain actuator

Approvals

ENEC; UL; CSA

Note

4.8´0.5 crimp receptacles are not suitable

Approvals

ENEC; UL; CSA

CSA LR 10990

ENEC 15 122551-03/A1

H8553VB Datasheet
