SRL5MS2850, Lorlin Key Switch, DP-CO, 3 A@ 50 V dc, 5 A@ 115 V ac 2-Way, -20 → +65°C, Выключатель с ключом

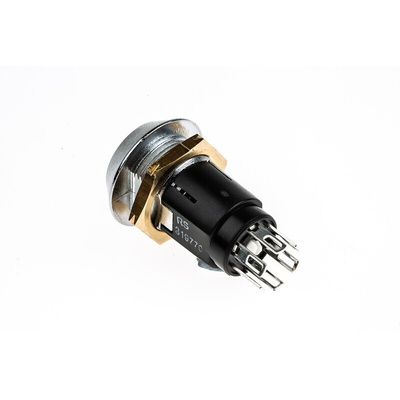

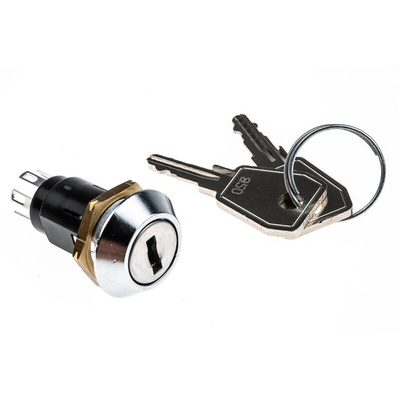

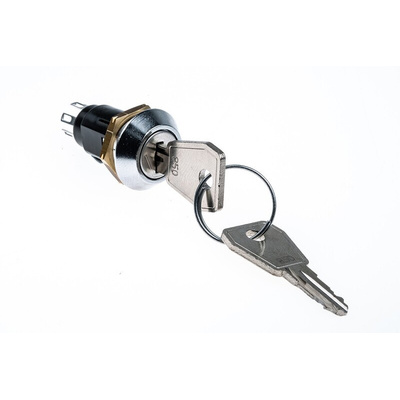

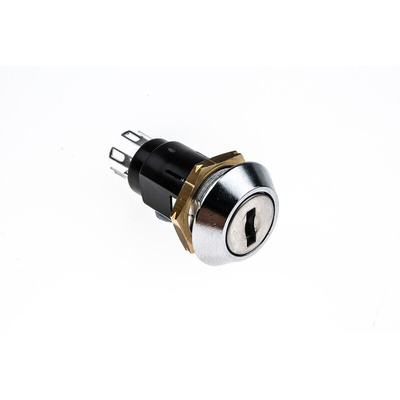

Lorlin Key Switch

The Lorlin 2-position key switch is a miniature, key-operated lock switch. It is suitable for many low voltage applications. The spare keys are available for common profiles, but not for random profiles, for security reasons.

Features and Benefits

Single or double pole
Up to 200 key combinations
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through the front of equipment panel
Rear projection less than 30mm from the panel
Contact configuration is DP-CO
Key trapping
Contact current rating is 3A at 50VDC, 5A at 115VAC
Common key
Solder terminal
Case material is glass fibre reinforced PA
Bezel shape is tapered
Depth behind panel is 22.4mm
Key index angle is 60°
Contact material is silver plated brass
Operating temperature ranging between -20°C and 65°C
Mechanical life is 10,000 operations

Applications

Control panels
Alarms
Lighting controls

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

SRL5-Series Lockswitches: Data & Drawings
