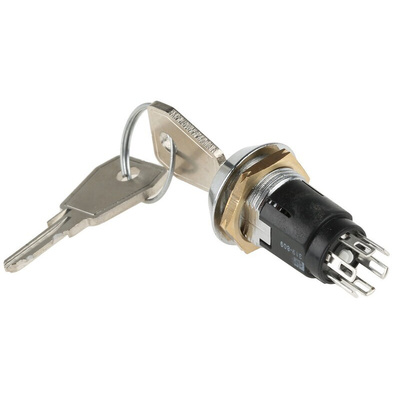

Lorlin Key Switch
The Lorlin key switch has a double pole double throw (DPDT-NO/NC) contact configuration. It is high tech, miniature, key-operated lock switch. It is suitable for many low voltage switching applications. The switch has a contact current rating of 1 A @ 24V ac dc / 115V ac.
Features and Benefits
Up to 200 key combinations
Common keys available keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
Number of positions are 2
Key trapping
Random key
Terminal type\tsolder
Case material is zinc alloy
Bezel shape is round
Key index angle is 60°
Contact material is silver-plated brass
Operating temperature ranges between -20°C and 65°C
Applications
Control panels
Lighting controls
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
