K22208EAAL, Arcolectric Panel Mount Slide Switch Double Pole Double Throw (DPDT) 16 A @ 250 V ac Slide, Переключатель

Arcolectric Voltage Selector Slide Switches

2 position, panel mount
Designed to select the operating voltage in dual voltage equipment, using transformers with two independent windings which can be connected in parallel or series for 115 V or 230 V supplies.

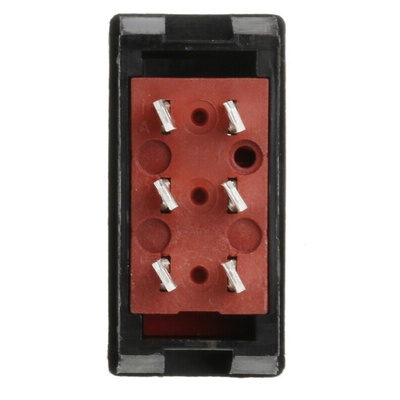

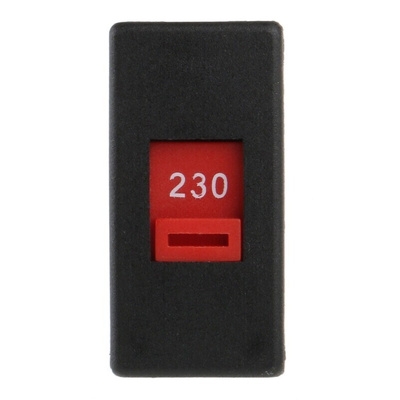

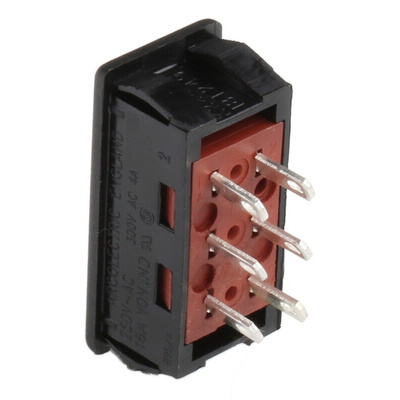

Snap-in type (stock no. 319-900) is push fit into panel, moulded in black with a red slider marked 115//230, with 0·11 in (110) terminals suitable for push on receptacles or soldering
Chassis type (stock no. 332-470) mounts behind panels; moulded in black with a black slider marked 115//230, with solder tag terminals
Silver alloy contacts
Nylon 6.6 actuator and case

Note

* In accordance with ENEC

Approvals

ENEC, UL, CSA

Approvals

ENEC; UL; CSA

CSA APPROVAL LR 10990-21

ENEC 137185-01
