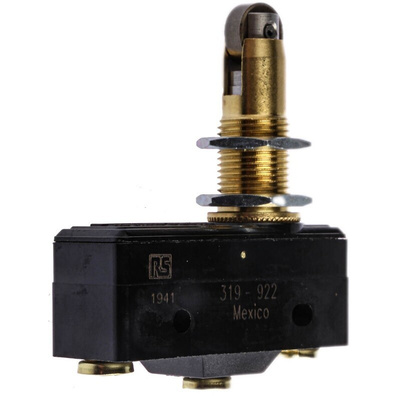

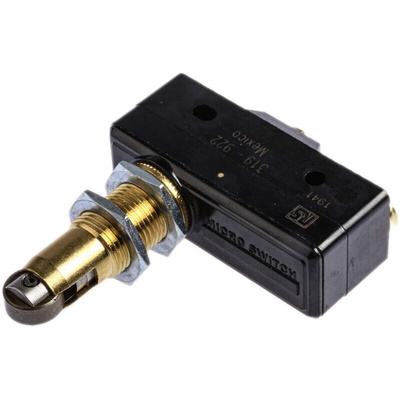

BZ-2RQ18M-A2, Honeywell Roller Plunger Micro Switch, Screw Terminal, 15 A @ 480 V ac, SP-CO, Микропереключатель

Heavy-duty Type (a) Microswitch

Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver

Approvals

UL; CSA

Honeywell Roller Plunger Microswitch, 15A at 480V AC, Polybutylene Terephthalate - BZ Series - BZ-2RQ18M-A2

Protect your electrical connection from damage with this Honeywell microswitch. The roller wheel at the top runs along a conveyer and pushes the plunger actuator down when it touches a contact. The plunger then creates a reciprocating motion that triggers the limit switch, safely turning the current off until the plunger is brought back up. This compact microswitch is designed to handle a maximum current rating of 15A at 480V AC (alternating current), making it a good choice for use in low-current applications.

Features & Benefits

• Screw terminal ensures a secure connection
• Long mechanical life of up to 10 million operations for long-lasting performance
• Tough polybutylene terephthalate (PBT) case material protects against shocks, vibration and rough handling
• Silver contacts resist corrosion for a reliable connection
• Broad operating temperature range of -55°C to +85°C for use in demanding environments

Applications

• Water heaters
• Domestic appliances
• Emergency stop controls
• Door releases
• Timing devices

How much force does this microswitch need to operate?

This microswitch requires 3.88N (newtons) of release force and 3.628N of operating force, making it sensitive and easy to use.

Approvals

UL; CSA
