DC1C-C3RC, ZF Roller Lever Micro Switch, Through Hole Terminal, 6 A @ 250 V ac, SPDT, IP6K7, Микропереключатель

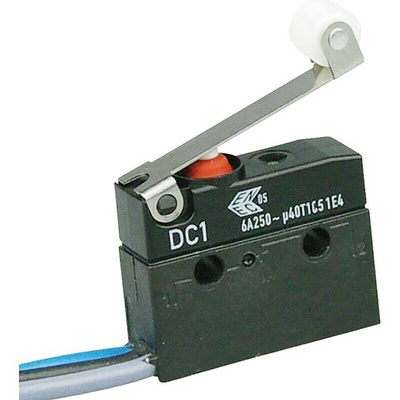

ZF Subminiature Microswitch

The ZF DC series subminiature Microswitch has a roller lever actuator and a contact rating of 6A at 250VAC. This is a highly reliable SPDT contact configuration Microswitch offers a high level of repeat accuracy.

Features and Benefits

Operating force is 0.78N
Operating temperature ranges between -40°C and 105°C
Housing material is PET/PBT

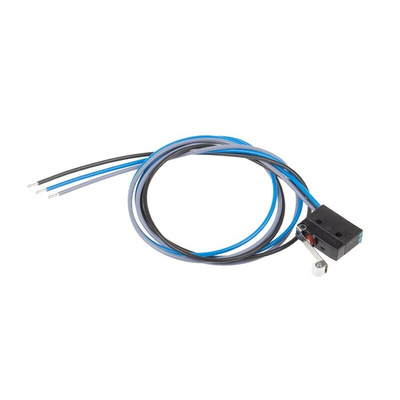

Leads 0.75mm² type termination
Mechanical life is more than 1x106 operations

Certifications

IP67 rated
ENEC certified
UL approved
KEMA certified

Approvals

ENEC; UL

DC Series Sealed Snap Switch Product Data Sheet

Product Drawing

Rebrand Information
