SRL5DD2, Lorlin Key Switch, SPDT, 5 A @ 115 V ac 2-Way Random-Key, Выключатель с ключом

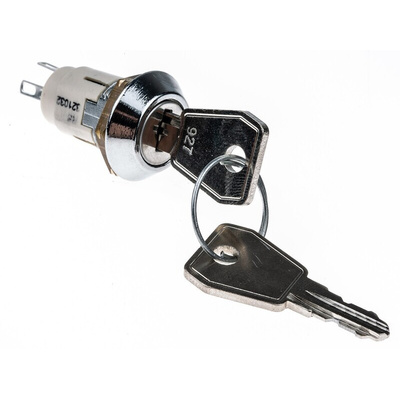

Lorlin Key Switch

The Lorlin Key switch has a single pole double through (SPDT) contact configuration. This 2-position key switch has silver-plated brass as contact material. It is suitable for many low voltage switching applications. This switch has a contact current rating of 5A and a voltage rating of 115VAC.

Features and Benefits

Miniature key-operated Lock switch
Up to 200 key combinations
Common keys available – keys to pass
Keys are double entry (they can be inserted into the lock either way up)
Occupies a small panel area
Easily assembled through front of equipment panel
Rear projection less than 30mm from panel
Contact configuration is SPDT-NO/NC
Contact current rating of 1 A @ 24V ac dc / 115V ac
Random key
Terminal type is solder
Case material is zinc alloy
Bezel shape is round
Key index angle is 90°
Contact material is silver-plated brass
Operating temperature ranges between -20°C and 65°C

Applications

Control panels
Lighting controls

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

SRL5-Series Lockswitches: Data & Drawings
