GHG4118201R1308, Eaton Push Button Control Station, 2 Cutouts, IP65, IP67

Dual Pushbutton

Start and Stop pushbuttons
Depth: 90mm

Certificate No.

PTB 00 ATEX 3117

Group and Category

II 2 G EEx e d IIC T6

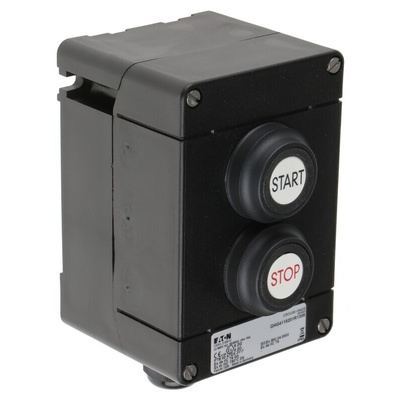

Eaton CEAG Start Stop Control Station - Crouse-Hinds Series - GHG4118201R1308

Looking for a control station to provide reliable circuit protection? This CEAG push-button unit from Eaton's Crouse-Hinds series effectively manages power and offers durability. Hard-wearing thermoplastic housing provides excellent insulation and makes the controller highly resistant to impact and chemicals. Its IP67 (ingress protection) rating also ensures it's completely dust-tight and water-resistant, while explosion protection means the unit is safe for use in hazardous commercial and industrial environments.
The stop and start push buttons snap in and out quickly for easy wiring. This product is ideal for off-shore applications and circuit-control tasks in demanding mechanical and chemical conditions.

• Low side walls for optimal cable connection

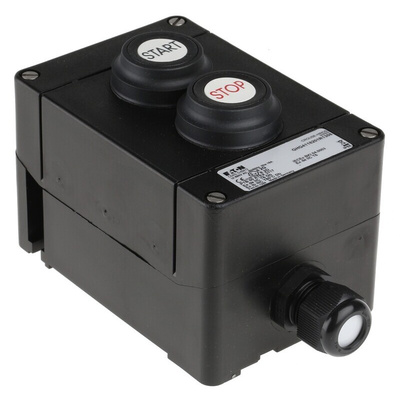

• M20 bottom cable entry with cable gland for ease of installation
• Notches in the mounting rails to stop built-in components from twisting out of place

What is an explosion-protected product?

Explosion protection indicates that the control station is Zone 1 and 2 ATEX (atmosphere explosible) certified. This means it's universally approved for use in areas where explosive gases are likely to be present during normal operation.

Where can I mount this control station?

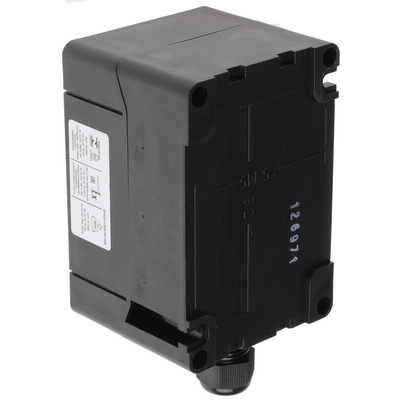

This unit is suitable for wall mounting. It's supplied with fixing holes that are easily accessible without the need to break the seal on the enclosure cover.

Note

Eaton formerly known as CEAG
Push buttons 202-3881 or 202-3897 or pilot light 202-3932 can be used.

CEAG Hazardous Area

Suitable for use in Zone 1 hazardous areas
Impact resistant thermoplastic
Ingress protection to IP67 (unless stated otherwise)

Rated voltage: contact blocks; 500V, signal lamps; 240V
Rated current: contact blocks; 16A
M20 bottom cable entry complete with cable-gland

PTB 00ATEX3117
